Machine Bay / Grinding machines / Surface grinder

Grinding machines

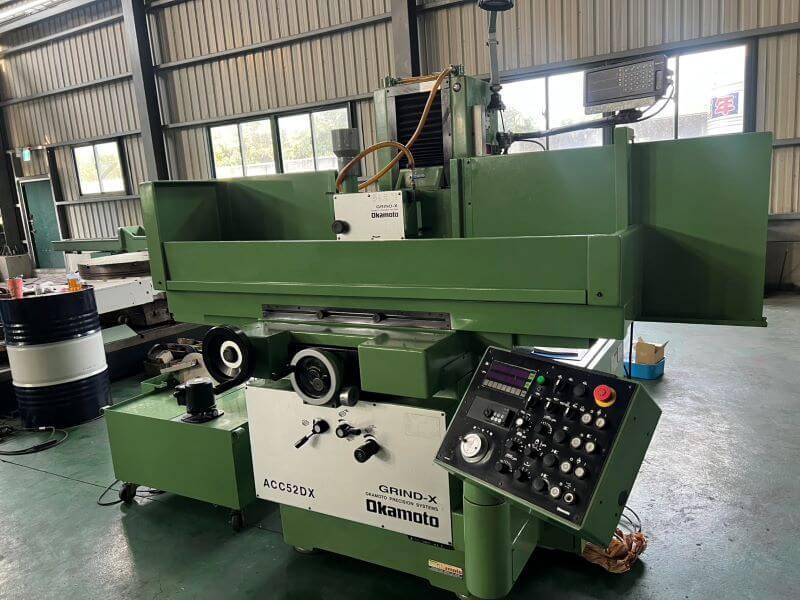

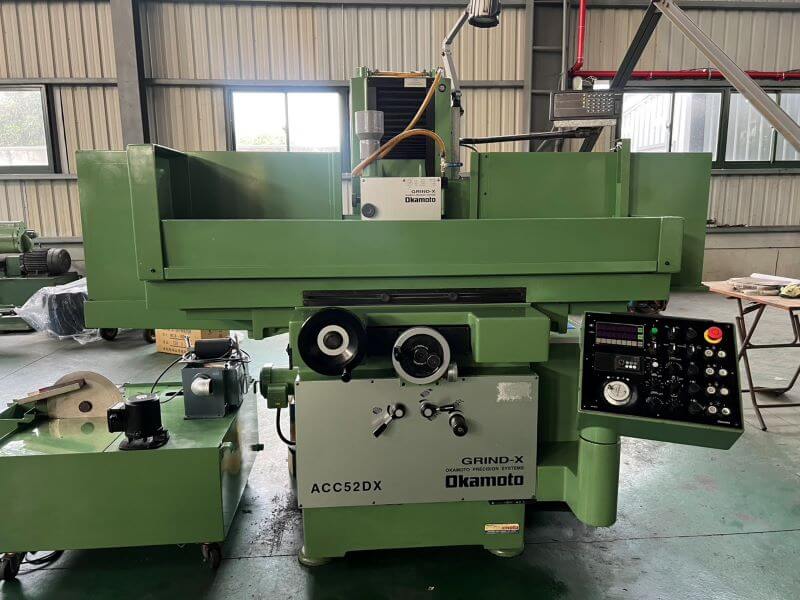

Surface Grinding Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

3 photos

Machine

TitleSurface Grinding Machine
MakerOKAMOTO
ModelACC-52DX
FamilyGrinding machines
TypeSurface grinder
Weight1,800 kg
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Max grinding length×width500×200
vertical clearance205mm wheel 47.5×397.5
Max weight of workpiece cinclusive of magnetic chuck200 kg
Table surface length550mm
maximum longitudinal travel650
cross travel230
Hydraulic feed47mm
Graduation of hand wheel0.02mm
Vertical hand feed revolution0.001
Rapid feed600mm/min
Grinding diameter205φ×50.8φ
spindle motor1.5KW/2P
Weight1,800 kg

Specification text

Max grinding length×width 500×200, vertical clearance 205mm wheel 47.5×397.5, Max weight of workpice cinclusive of magnetic chuck 200 kg, Table surface length 550mm, width200mm, maximum longitudinal travel 650, cross travel 230, feeds:longitudinal move ment of table 0.3~25 m/min, Hydraulic feed 47mm, Graduation of hand wheel 0.02mm, Vertical hand feed revolution 0.001, Rapid feed 600mm/min, Grinding diameter 205φ×50.8φ, 19T, 3000/3600rpm, spindle motor 1.5KW/2P, Weight 1,800 kg
