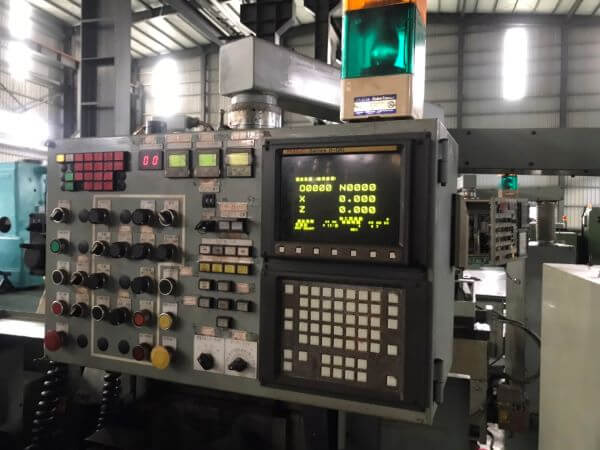

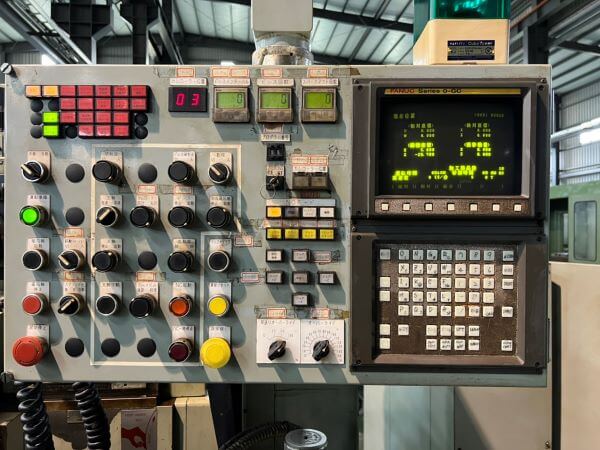

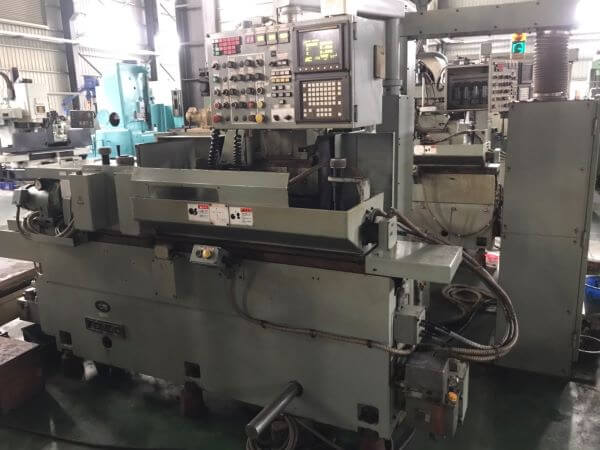

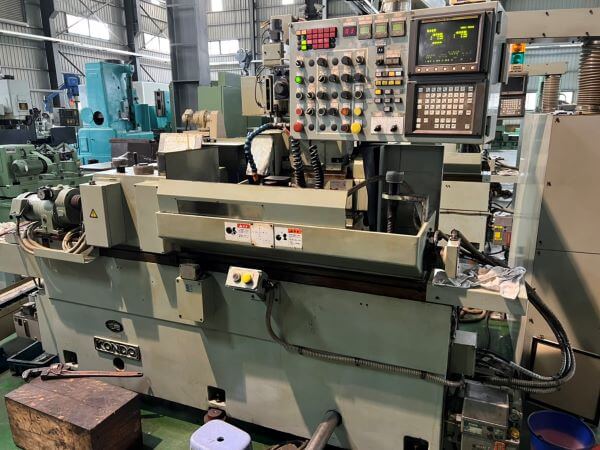

NC Camshaft Grinding Machine
Details being confirmed with supplier
Price on enquiry
Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.
Link copied.
Machine
| Title | NC Camshaft Grinding Machine |
|---|---|
| Maker | KONDO |
| Model | CGA-350NC TYPE |
| Family | Grinding machines |
| Type | Camshaft grinder |
| Weight | 4,500 kg |
| Location | Taichung, Taiwan |
| Price | Price on enquiry |
Not yet confirmed: voltage, year and condition.
Specification
| Distance between centers | 350 |
|---|---|
| Swing over table | 160 |
| Max grinding dia | 80φ |
| Max cam lift | 20 |
| Max workpiece weight | 10 kg |
| heel size | 510φ×(16, 19)×152.4φ |
| wheel speed | 1685rpm |
| wheel. table feed strokes | 225mm |
| spindle speed hight | 16~95rpm |
| OD of disc plate | 490φ |
| Master cam dia | 140φ |
| OD of cam roller | 170 |
| Number of mastor cams | 24 |
| Table traverse stroke | 440 |
| Auto dresser motor | 5.5kw |
| weight | 4,500 kg |
Specification text
Distance between centers 350, Swing over table 160, Max grinding dia 80φ, Max cam lift 20, Max workpiece weight 10 kg, heel size 510φ×(16, 19)×152.4φ, wheel speed 1685rpm, wheel. table feed strokes 225mm, center hole taper of work head MT.4, spindle speed hight 16~95rpm, Low 8~47.5rpm, size of taper on footstock MT.3, OD of disc plate 490φ, 450φ, Master cam dia 140φ, OD of cam roller 170, Number of mastor cams 24, Table traverse stroke 440, Auto dresser motor 5.5kw, weight 4,500 kg
