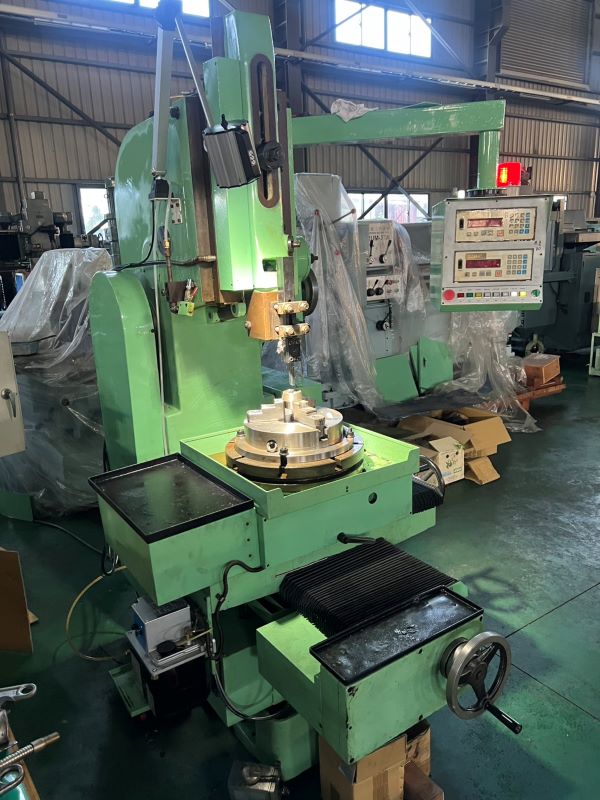

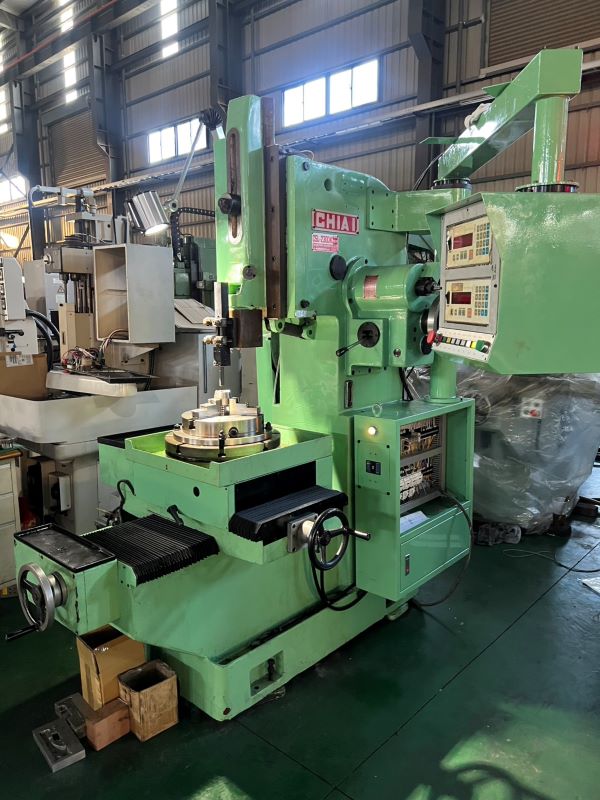

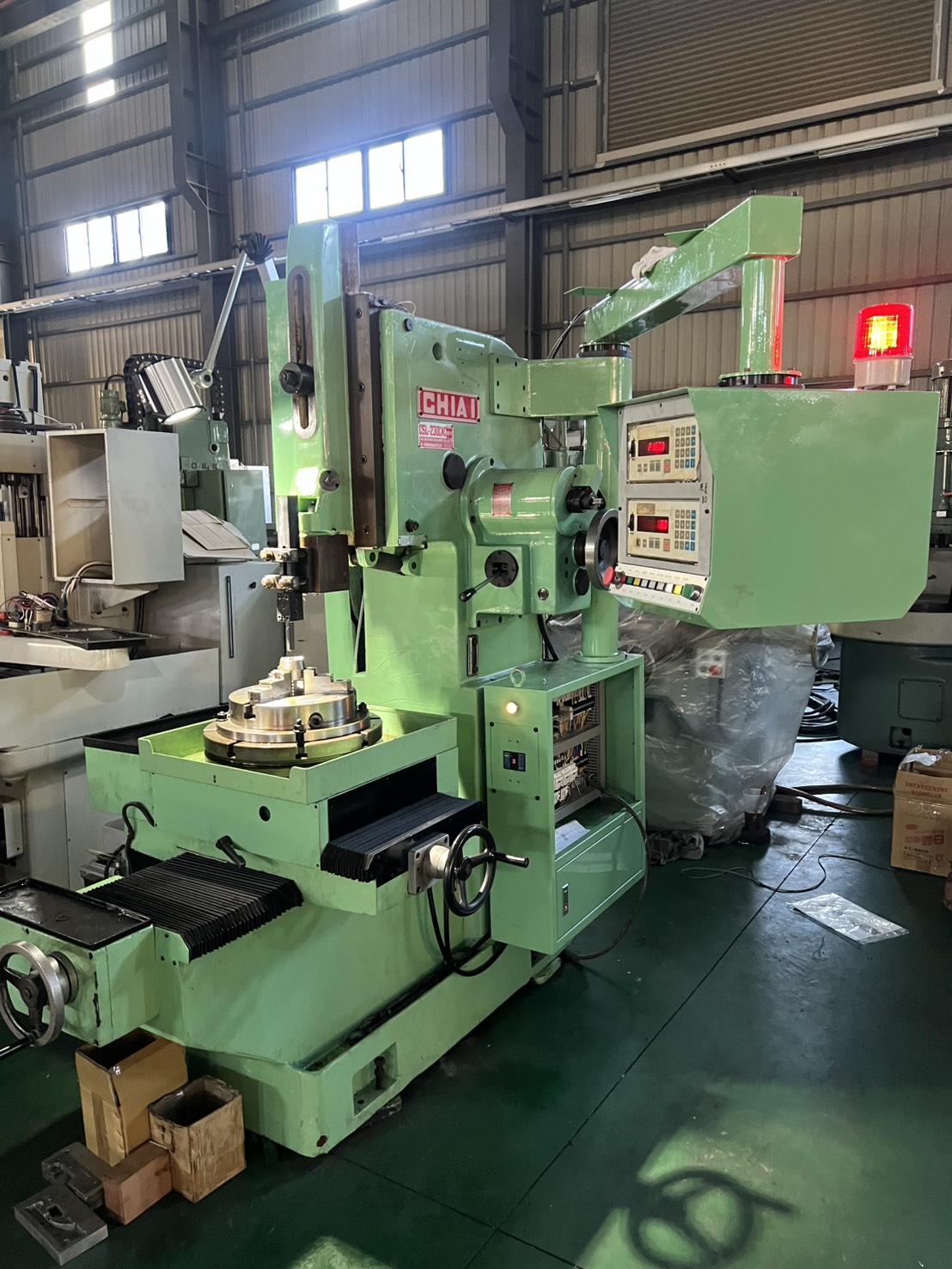

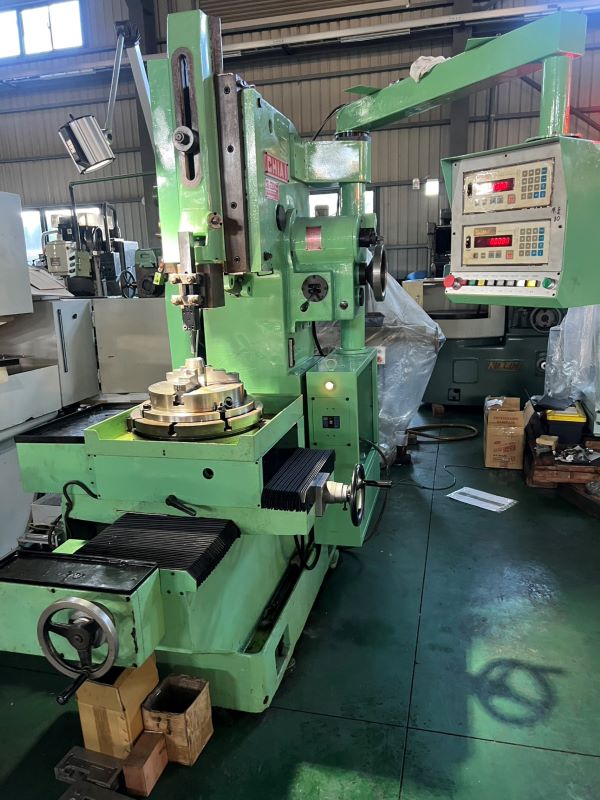

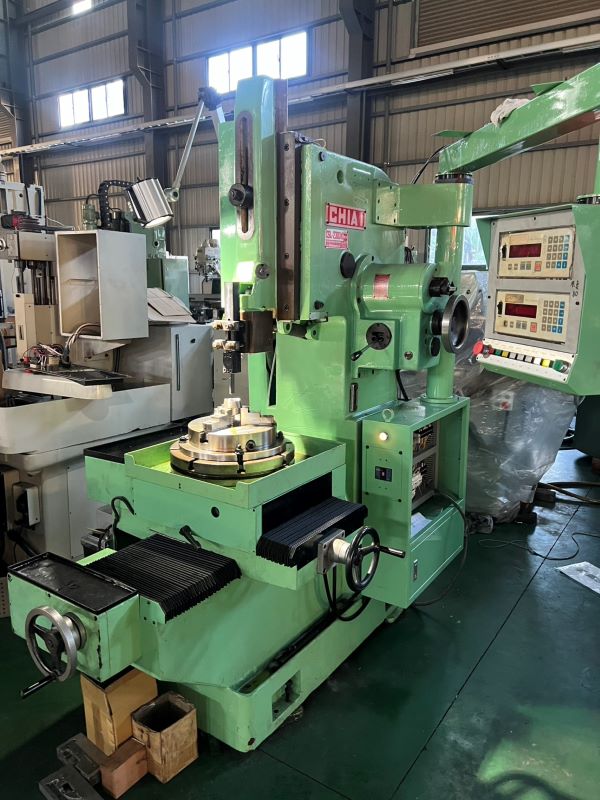

CNC Slotting Machine
Details being confirmed with supplier
Price on enquiry
Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.
Link copied.
Machine
| Title | CNC Slotting Machine |
|---|---|

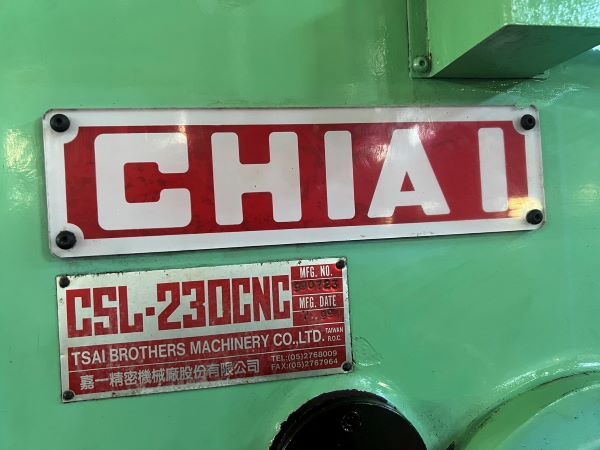

| Maker | CHIAI (M.I.T) |
| Model | CSL-230CNC |
| Family | Drilling, honing, broaching & shaping |
| Type | Slotting machine |
| Weight | 2,000 kg |
| Location | Taichung, Taiwan |
| Price | Price on enquiry |
Not yet confirmed: voltage, year and condition.
Specification
| Max stroke | 230 |
|---|---|
| table dia | 430 |
| front swivel angle of ram | 10° |
| Gear ratio 1 | 90 |
| Vertical ram travel | 320 |
| distance between end of ram work table | 450 |
| Y axis | 510 |
| X | 440 |
| Feed rate of work table | 0~2 |
| Main drive motor | 3HP |
| Net weight | 2,000 kg |
Specification text
Max stroke 230, table dia 430, front swivel angle of ram 10°, Gear ratio 1:90, Ram speed (rpm)22, 36, 56, 91, Vertical ram travel 320, distance between end of ram work table 450, Y axis 510, X 440, Feed rate of work table 0~2, Main drive motor 3HP, Feeding and dividing motor(stepping motor)81 kg/CM, Net weight 2,000 kg
Outback Lifting Pty Ltd
How to buy
- 1 Ask for a written quote.
- 2 We confirm specs, photos and video where available.
- 3 We quote freight and delivery to your site.
