Machine Bay / Milling machines / Bed-type / combined milling machine

Milling machines

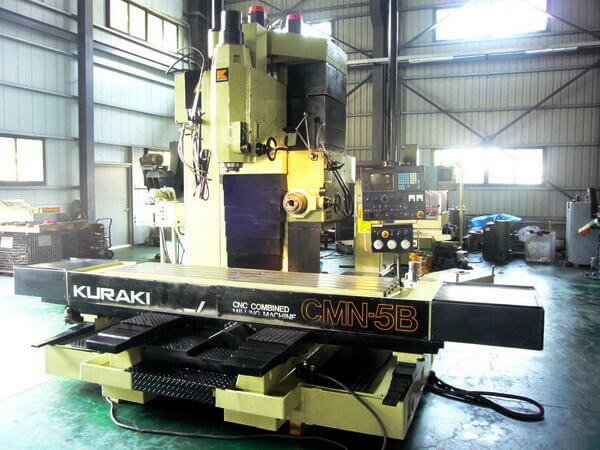

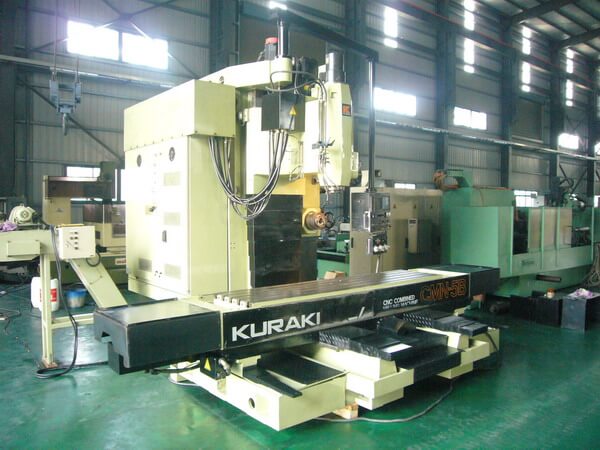

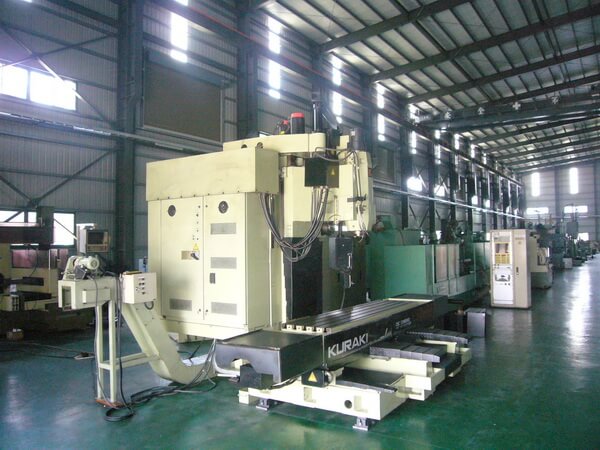

CNC Combined Milling Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

6 photos

Machine

TitleCNC Combined Milling Machine
MakerKURAKI
ModelCMN-5B/L.H
FamilyMilling machines
TypeBed-type / combined milling machine
X travel2010 mm
Y travel650 mm
Z travel850 mm
Table2500 × 600 mm
Weight16,600 kg

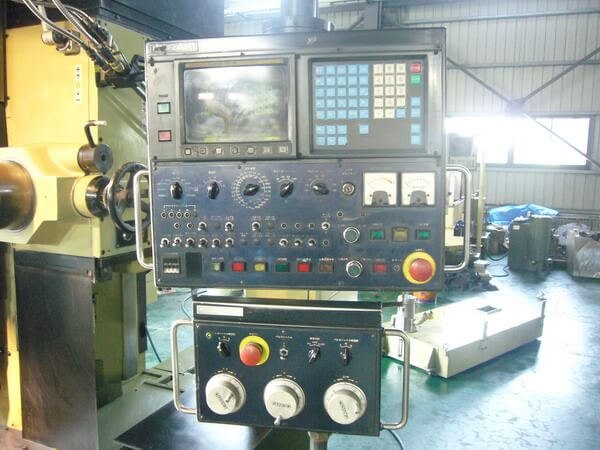

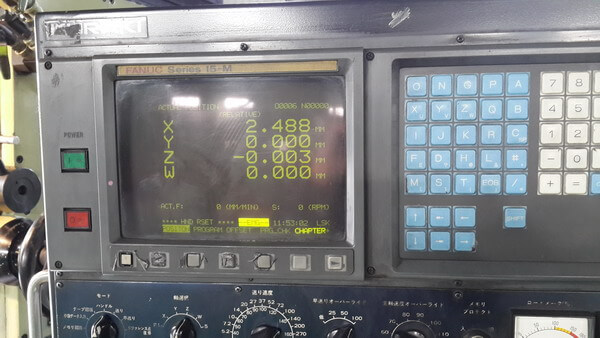

ControlFanuc 15MA
LocationTaichung, Taiwan
PricePrice on enquiry
Table (mm)2500x600

Not yet confirmed: voltage, year and condition.

Specification

Table size2500×600
Spindle Speeds20~2100rpm
Max Loading Weight2,000 kg
Net Weight16,600 kg

Specification text

Table size 2500×600,Table Cross Travel: X-Axis: 2010,Table Longitudinal Travel: Y-Axis: 650,Vertical Spindle Head Travel: Z-Axis: 850,Horizontal Spindle Head Travel: W-Axis: 1030,FANUC 15MA,Spindle Speeds 20~2100rpm,Max Loading Weight 2,000 kg,Net Weight: 16,600 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
