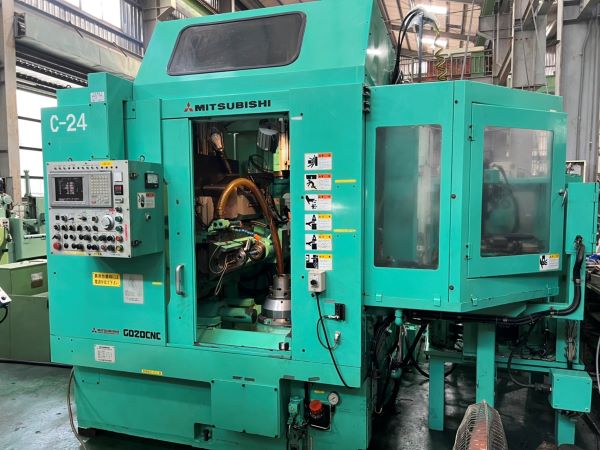

5 Axis CNC Gear Hobbing Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

5 photos

Machine

Title5 Axis CNC Gear Hobbing Machine
MakerMITSUBISHI
ModelGD-20CNC
FamilyGear machines
TypeGear hobbing machine
Weight6,500 kg

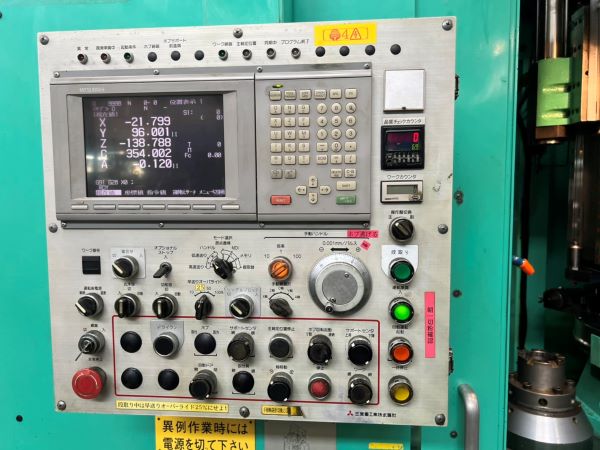

ControlMitsubishi MELDASS
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Max workpiece diaφ200
Max dia pitchM6
Max axial travel250
Max radial travel225
High worktable to centre of hob spindle190~440
Center distance between hob spindle and work spindle25~250mm
Max hob dia×length130×230
Max hob shift180
Hob speed range100~1000rpm
Max table speed200rpm
Hob head swiveling angle±45°
Main motor7.5KW
Net weight6,500 kg
ControlMITSUBISHI-MELDASS

Specification text

Max workpiace diaφ200, Max dia pitch M6, Max axial traver 250, Max radial travel 225, High worktable to cnter of hob sprindl 190~440, Center distance between hob sprindle and work spindle 25~250mm, Max hob dia×length 130×230, Max hob shift 180, Hob speed range 100~1000rpm, Max table speed 200rpm, Hob head swiveling angle ±45°, Main motor 7.5KW, Net weight 6,500 kg, CNC 5 AXIS, Control: MITSUBISHI-MELDASS, Auto loader
