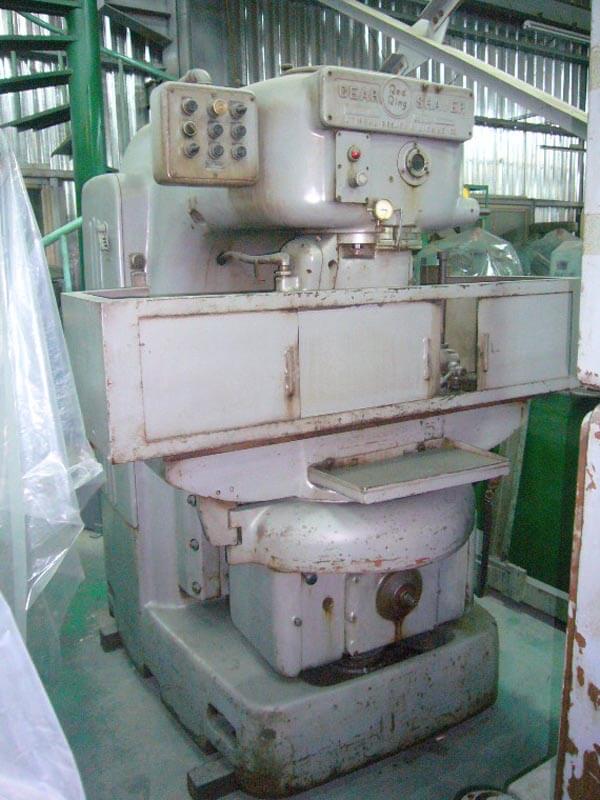

Red Ring (USA) GUF-8 Gear Shaving Machine
Details being confirmed with supplier
Price on enquiry
Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.
Link copied.
Machine
| Title | Red Ring (USA) GUF-8 Gear Shaving Machine |
|---|---|
| Maker | Red Ring (USA) |
| Model | GUF-8 |
| Family | Gear machines |
| Type | Gear shaving machine |
| Weight | 3,221 kg (7,100 lb) |
| Location | Taichung, Taiwan |
| Price | Price on enquiry |
| Max work diameter (mm) | 8 mm |
Not yet confirmed: voltage, year and condition.
Specification
| Maximum Work Diameter | 8-3/4" 223.5mm |
|---|---|
| Maximum Pitch Diameter | 1"~8" 25.4~203.2mm |
| Minimum Pitch Diameter | 1"~25.4mm |
| Maximum Diametrical Pitch | -----4~16DP-----1.54mm~6.35mm |
| Maximum Distance Between Centers | 914.4mm |
| Maximum Cutter Diameter | 254mm |
| Maximum Table Stroke | 127mm |
| Cutter Speed Range | 71~281 RPM |
Specification text
Maximum Work Diameter8-3/4" 223.5mm, Maximum Pitch Diameter1"~8" 25.4~203.2mm, Minimum Pitch Diameter1"~25.4mm, Maximum Diametrical Pitch-----4~16DP-----1.54mm~6.35mm, Maximum Distance Between Centers914.4mm, Maximum Cutter Diameter254mm, Maximum Table Stroke127mm, Cutter Speed Range71~281 RPM, Machine Net Weight,Approx. 7,100 lb, Dimensions(L×W×H)1168×1397×1981mm
