CNC Gear Hobbing Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Machine

Title	CNC Gear Hobbing Machine
Maker	KASHIFUJI
Model	KS-300-CNC-5
Family	Gear machines
Type	Gear hobbing machine
Weight	8,500 kg
Location	Taichung, Taiwan
Price	Price on enquiry
Max work diameter (mm)	300 mm
Module	8
Spindle taper	NT45

Not yet confirmed: voltage, year and condition.

Specification

Max Cutting Dia	300φ
max module	8
max travel of cutter saddle	300
max cutting tilt angle	±45°
The number of cutting teeth	4~1023
the maximum cutting lead is	45000mm
Center distance between Hob&Table	20~280
Table dia	300
Table hole	82
Max Hob size	150φ×180L
standard hob dia	40φ
Taper of spindle nose NT	45
Hob travel distance	130
Hob rpm	400rpm
Max worktable rpm	40rpm
Main motor	15kw
Floor area	3390×3010mm
weight	8,500 kg
cutting function	1.one auto cycle

Specification text

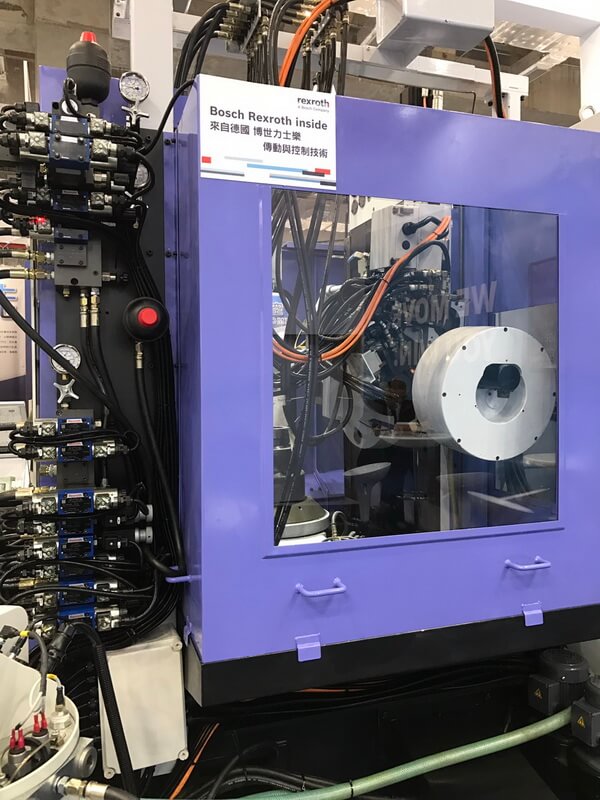

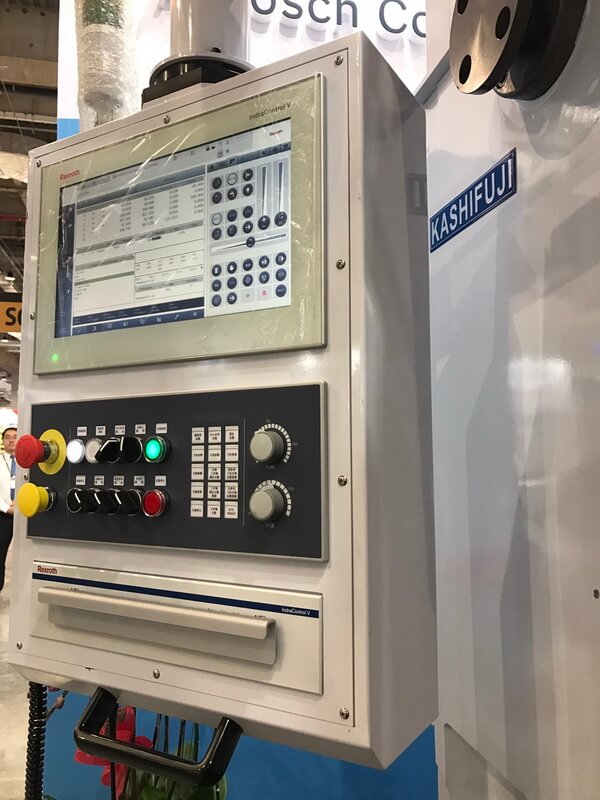

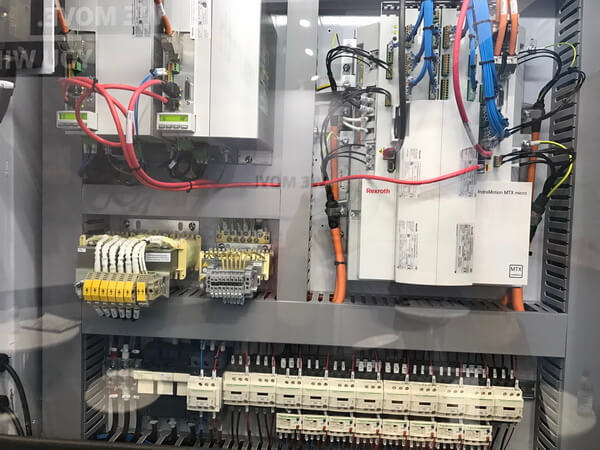

Germany-made Bosch rexroth MTX-micro type, High-level five-axis computer system,with KASHIFUJI machine body,Max Cutting Dia 300φ,max module8,max travel of cutter saddle 300,max cutting tilt angle±45°, The number of cutting teeth 4~1023, the maximum cutting lead is 45000mm,,Center distance between Hob&Table 20~280,Table dia 300,Table hole 82,Max Hob size 150φ×180L,standard hob dia 40φ,Taper of spindle nose NT45, Hob travel distance130,Hob rpm 400rpm,Max worktable rpm 40rpm,NC5axis(table rotation,feed up/down,feed back/forth,hob head tilting,Main motor 15kw,Floor area 3390×3010mm,weight 8,500 kg,cutting function: 1.one auto cycle,2.two auto cycle,3.Crowning cutting,4.Inclined cutting,5.step cutting,6.worm cutting
