Machine Bay

Machine Bay / Gear machines / Gear hobbing machine

Gear machines

NC Gear Hobbing Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

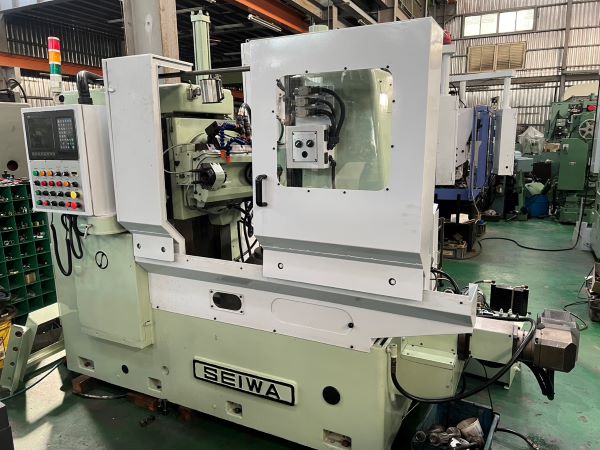

2 photos

Machine

TitleNC Gear Hobbing Machine
MakerSEIWA
ModelMS-30
FamilyGear machines
TypeGear hobbing machine
Weight8,000 kg
LocationTaichung, Taiwan
PricePrice on enquiry
Max work diameter (mm)300 mm
Module6

Not yet confirmed: voltage, year and condition.

Specification

Max workpiece diaφ300
Max workpiece module6
Max axial travel350
Distance between the centers of hob arbor and work arbor20~250
table diaφ350
table boreφ82
hob shift130
spindle rpm100~400
Main motor10HP
machine weight8,000 kg

Specification text

Max workpice diaφ300, Max workpiece module 6, Max axial travel 350, Distance between the centers of hob arbor and work arbor 20~250, table dia φ350, table boreφ82, hob shift 130, spindle rpm 100~400, Main motor 10HP, 1 axis NC (radial), machine weight 8,000 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
