Machine Bay / Gear machines / Gear hobbing machine

Gear machines

Production Gear Hobbing Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

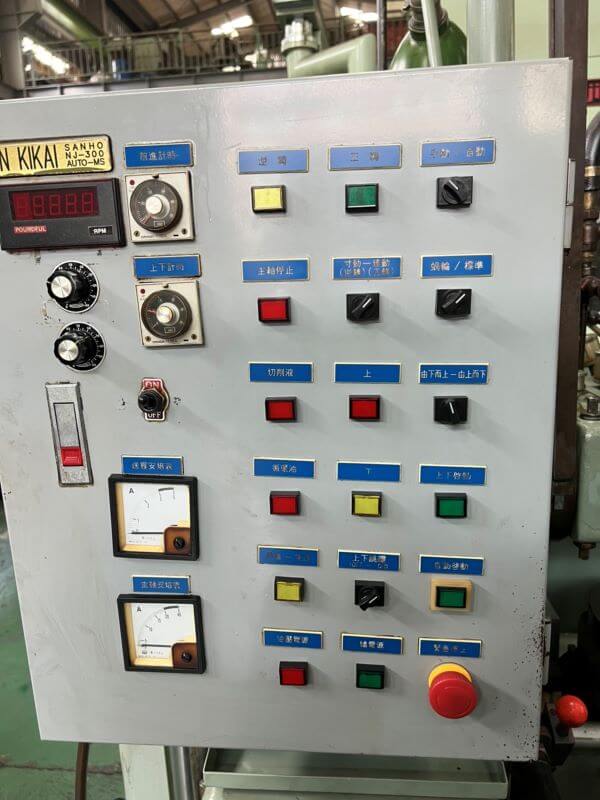

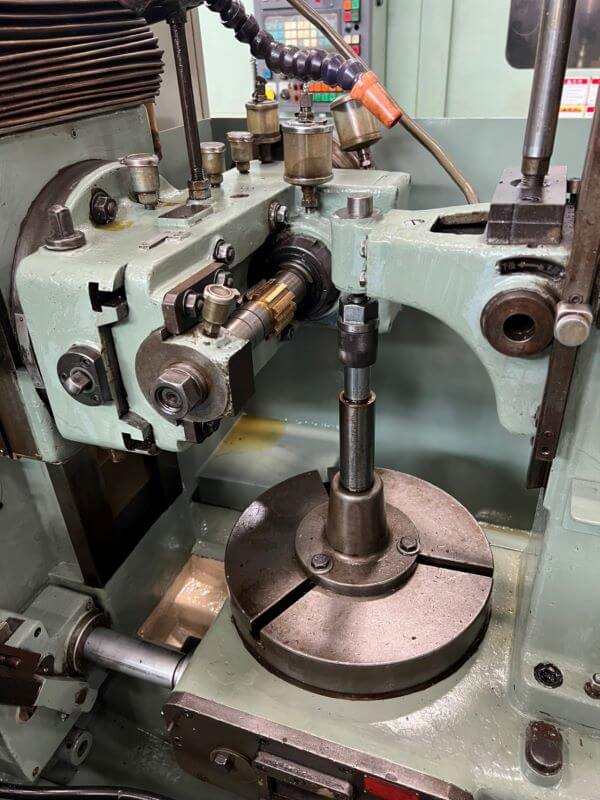

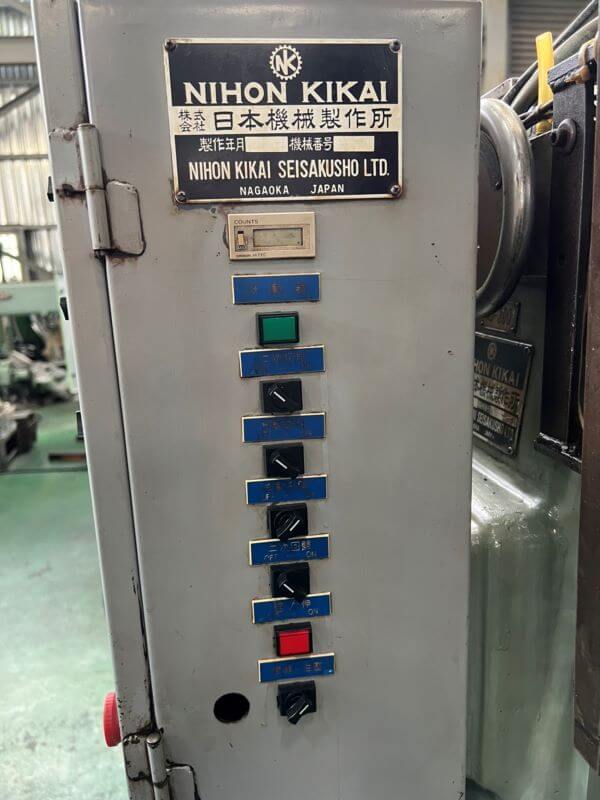

4 photos

Machine

TitleProduction Gear Hobbing Machine
MakerNIHONKIKAI
ModelNJ-300 (Auto 2 Cycle)
FamilyGear machines
TypeGear hobbing machine
Weight1,800 kg
LocationTaichung, Taiwan
PricePrice on enquiry
Max work diameter (mm)500 mm
Module3

Not yet confirmed: voltage, year and condition.

Specification

MAX DIA500φ
Max dia300φ(with support)
MAX MODULE3
max travel of hob saddle210mm
min center distance between hob arbor and work arbor10mm
Dia of table300
Hob speeds28~400rpm
Hob size80φ×90L
Machine weight1,800 kg

Specification text

MAX DIA500φ, (without support), Max dia 300φ(with support), MAX MODULE 3, max travel of hob saddle 210mm, min center distance between hob arbor and work arbor 10mm, Dia of table 300, Hob speeds 28~400rpm, Hob size 80φ×90L, Machine weight 1,800 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
