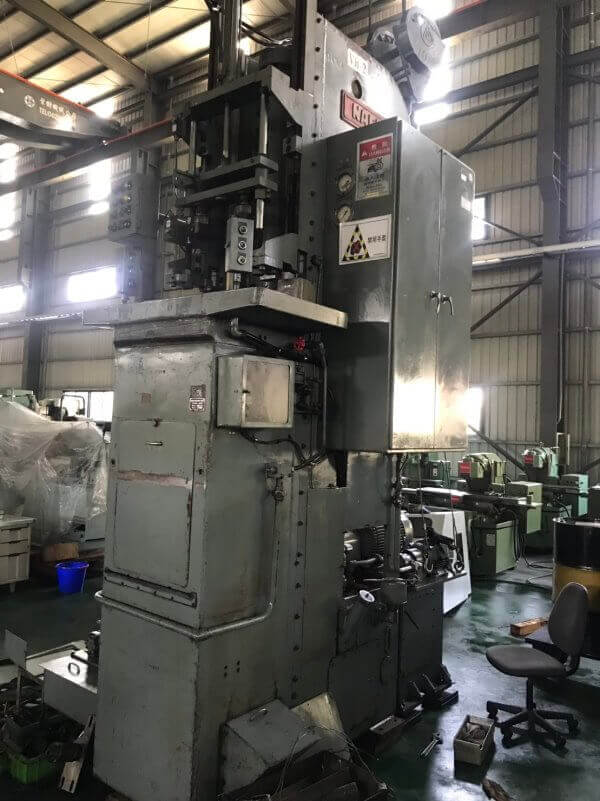

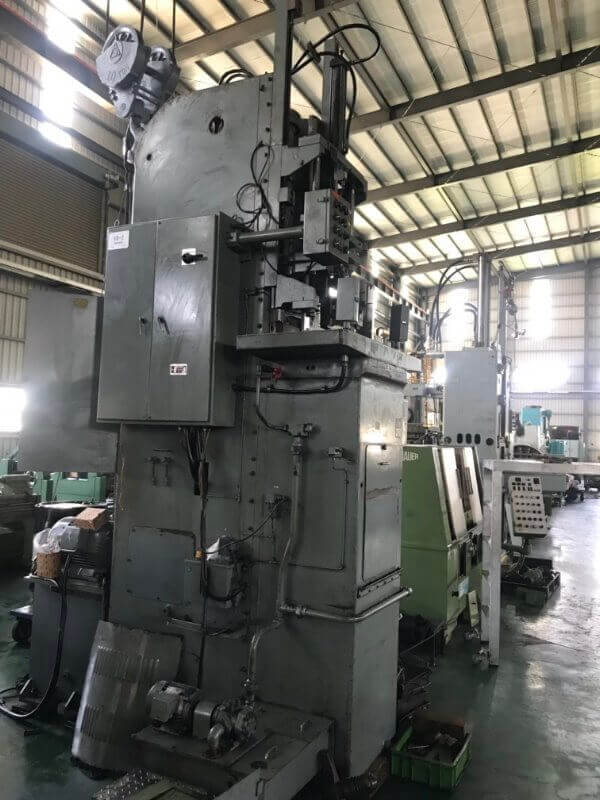

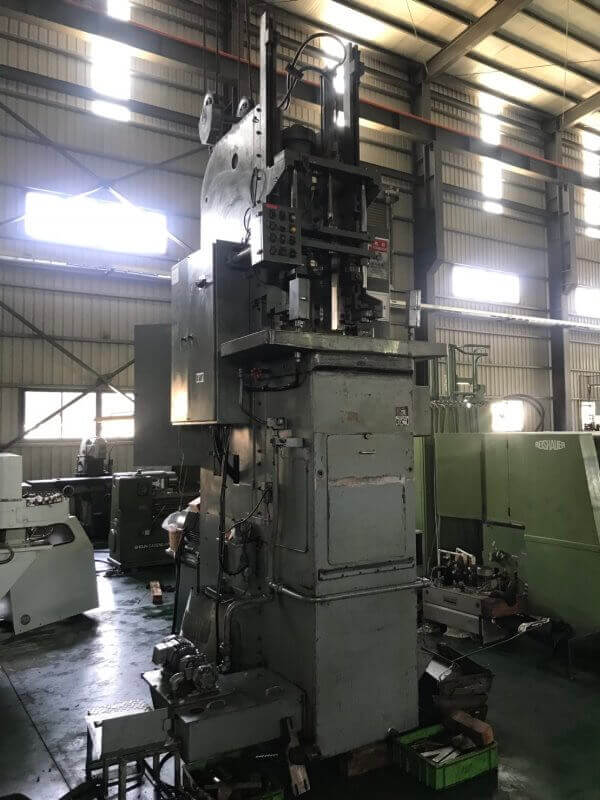

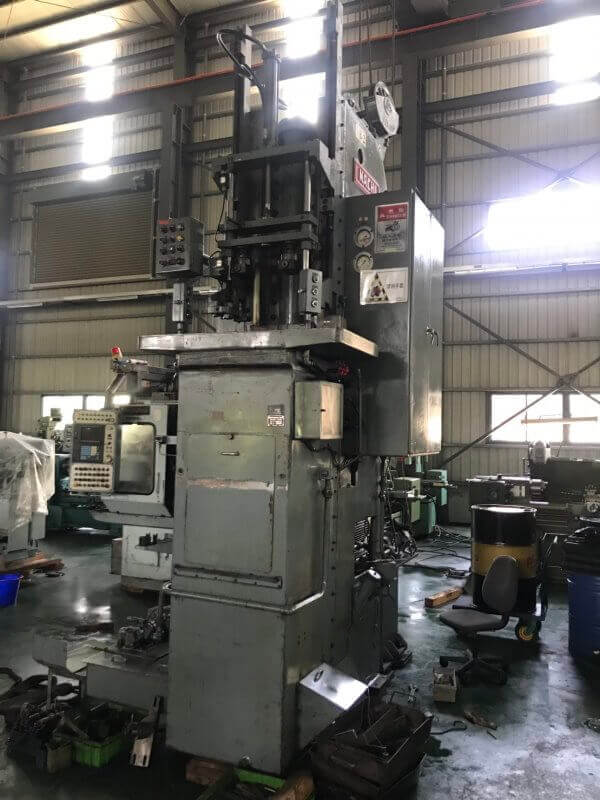

Vertical Broaching Machines

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

7 photos

Machine

TitleVertical Broaching Machines
MakerNACHI
ModelNUV-10BTH
FamilyDrilling, honing, broaching & shaping
TypeBroaching machine
Weight8,000 kg
LocationTaichung, Taiwan
PricePrice on enquiry

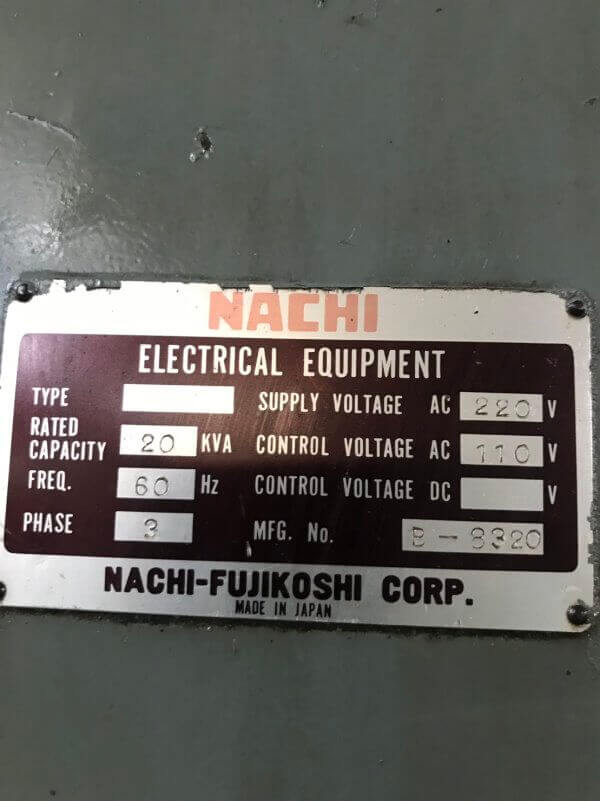

Not yet confirmed: voltage, year and condition.

Specification

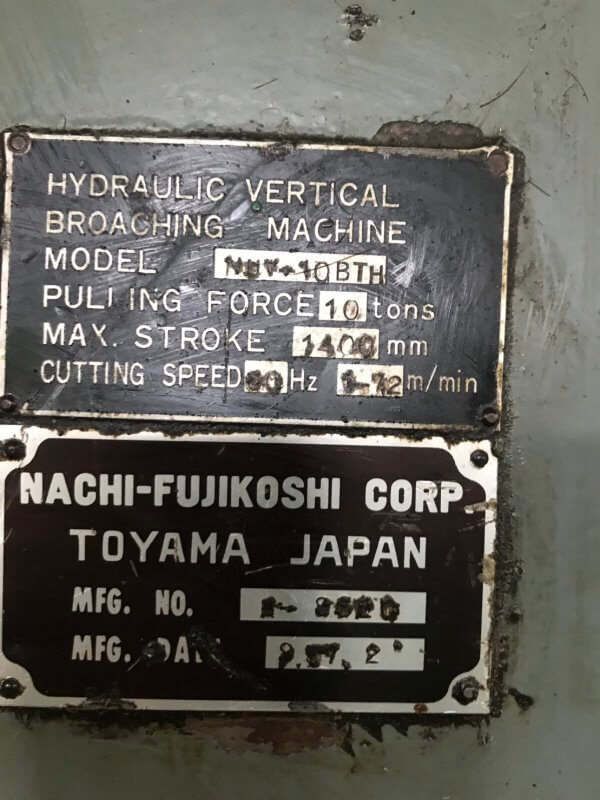

Pulling force10Ton
Max stroke1400mm
Cutting speeds60Hz 1~7.2M/min
Return speeds60Hz 20M/min
Broach lifter stroke440mm
Ram width430mm
Bolster hole dia127
Max outside dia of workpiece380φ
Working table height2200mm
Main motor15KW/6P
Floor space1700×2400mm
Weight8,000 kg

Specification text

Pulling force10Ton, Max stroke 1400mm, Cutting speeds 60Hz 1~7.2M/min, Return speeds 60Hz 20M/min, Broach lifter stroke 440mm, Ram width 430mm, Bolster hole dia 127, Max outside dia of workpiece 380φ, Working table height 2200mm, Main motor 15KW/6P, Floor space 1700×2400mm, Weight 8,000 kg
