Machine Bay

Machine Bay / Milling machines / Vertical milling machine

Milling machines

CNC Milling Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

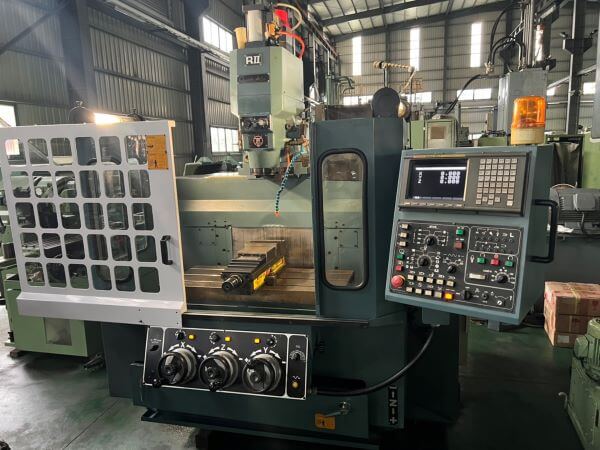

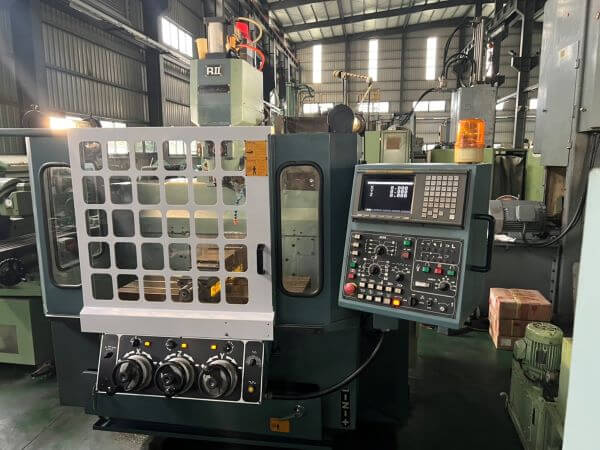

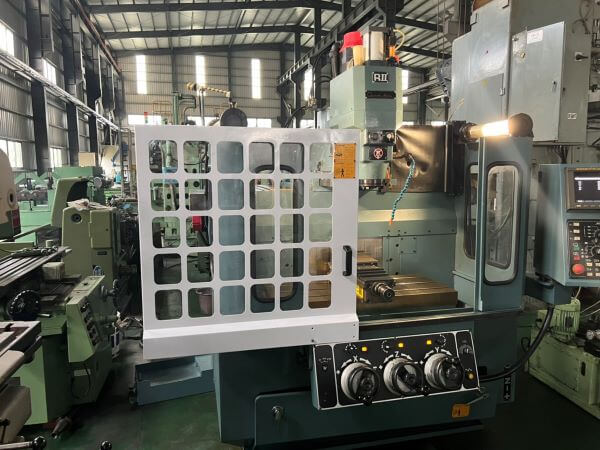

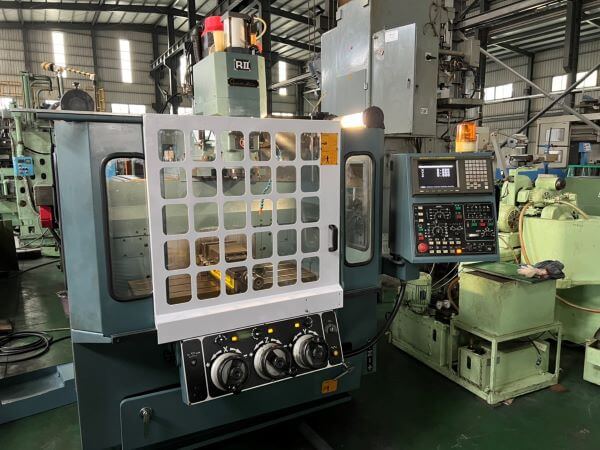

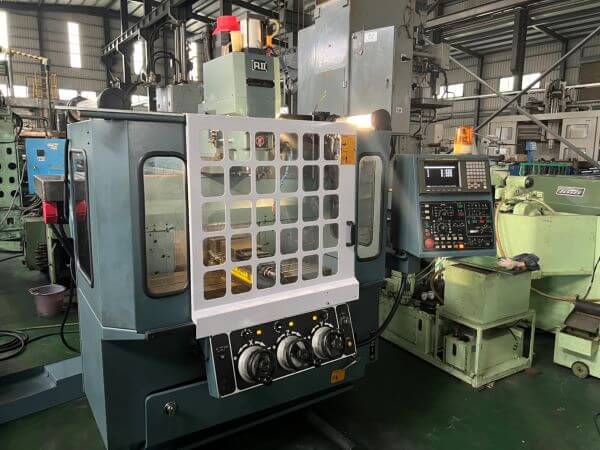

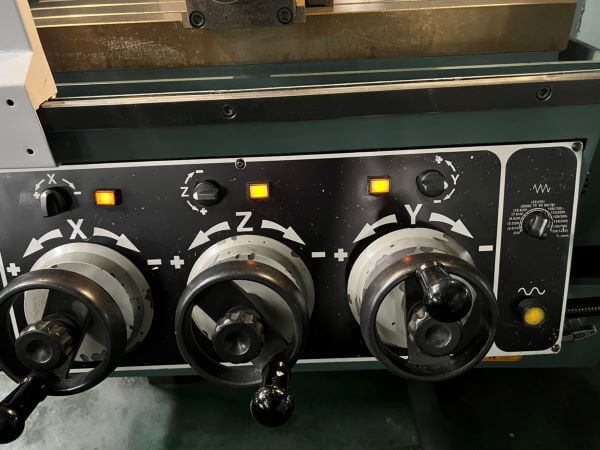

8 photos

Machine

TitleCNC Milling Machine
MakerQuick Jet (M.I.T)
ModelQJM-RIIS
FamilyMilling machines
TypeVertical milling machine
X travel700 mm
Y travel400 mm
Z travel320 mm
Table950 × 400 mm
Weight3,500 kg

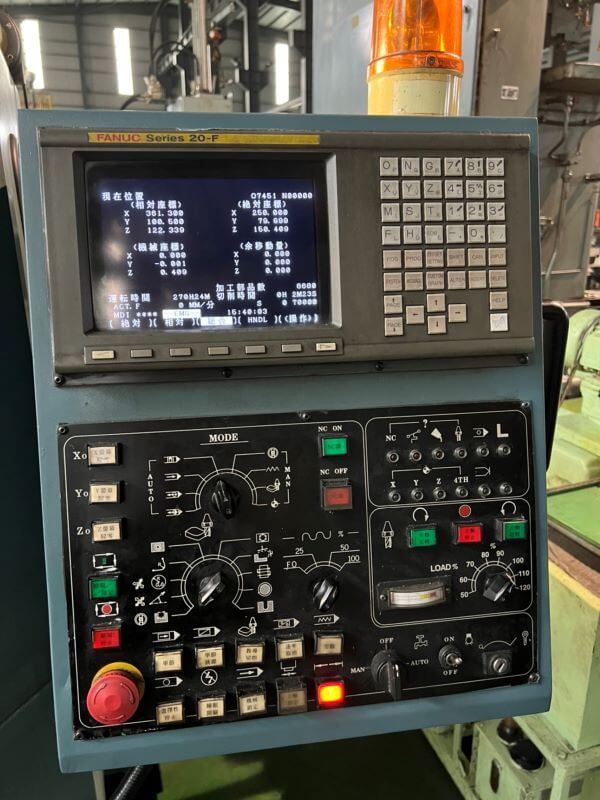

ControlFanuc 20F
LocationTaichung, Taiwan
PricePrice on enquiry
Table (mm)950x400
Spindle taperISO40

Not yet confirmed: voltage, year and condition.

Specification

Table size950×400
Max load on table350 kg
X-axis×Y-axisZ-axis700×400×320
From spindle end to table top200~520
Spindle speed30~4500rpm
main motor3.7kw
Control FANUC20F
machine size2270L2267W×2415H
Weight3,500 kg

Specification text

Table size 950×400, Max load on table 350 kg, X-axis×Y-axisZ-axis: 700×400×320, From spindle end to table top 200~520, From spindle center to column front, Spindle end type ISO NO.40, Spindle speed 30~4500rpm, main motor 3.7kw, Control FANUC 20F, machine size 2270L2267W×2415H, Weight 3,500 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
