Machine Bay

Machine Bay / Lathes & turning / Conventional lathe

Lathes & turning

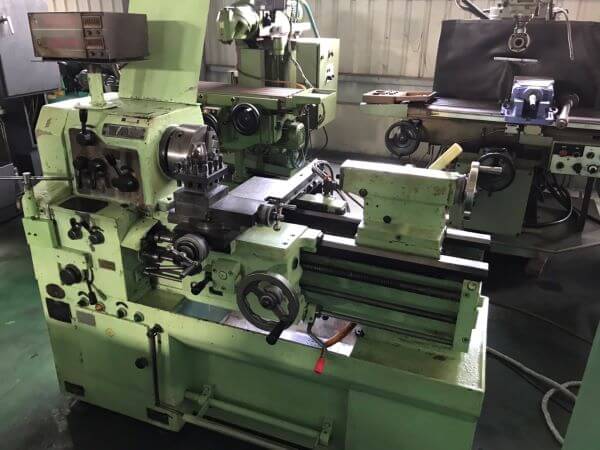

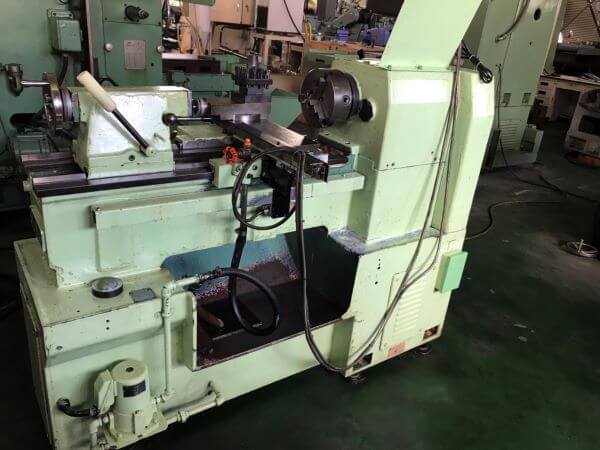

YAM (M.I.T) YAM-550 Conventional Lathe

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

4 photos

Machine

TitleYAM (M.I.T) YAM-550 Conventional Lathe
MakerYAM (M.I.T)
ModelYAM-550
FamilyLathes & turning
TypeConventional lathe
Swing over bed350 mm
Between centres550 mm
Weight1,020 kg
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Width of bed280
Swing over bed350φ
Swing over cross spinde210φ
Distance between center550
Spindle speed83~1800rpm
Spindle bore45φ
Travel for X-Axis212mm
Travel for Z-Axis508mm
Weight1,020 kg

Specification text

Width of bed 280, Swing over bed 350φ, Swing over cross spinde210φ, Distance between center 550, Spindle speed 83~1800rpm, Spindle bore 45φ, Tail stock taper NO.4, Travel for X-Axis 212mm, Travel for Z-Axis 508mm, Dimensions 1600×1700×1160, Weight 1,020 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
