Machine Bay / Gear machines / Gear grinder

Gear machines

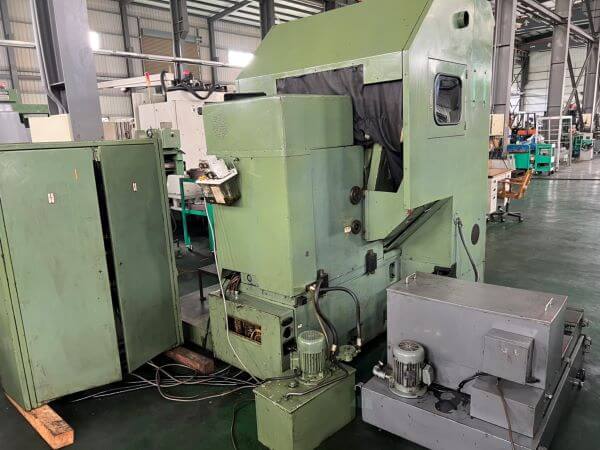

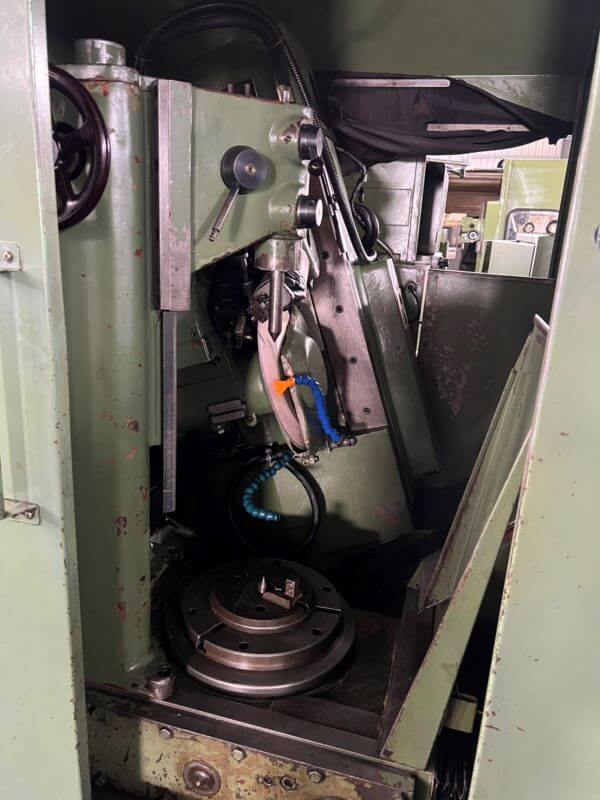

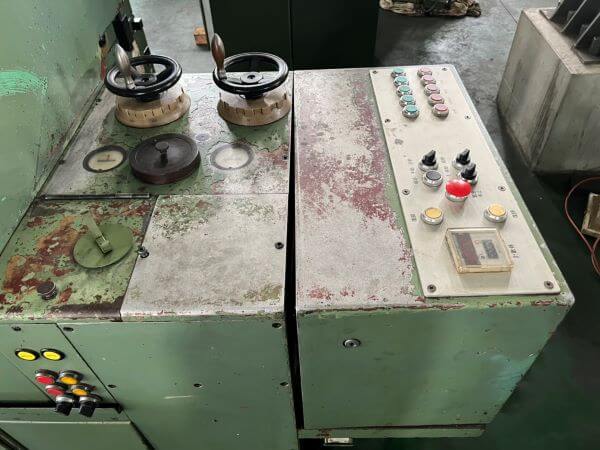

Spur and Helical Gear Generating Grinding Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

4 photos

Machine

TitleSpur and Helical Gear Generating Grinding Machine
MakerWMW Niles
ModelZSTZ×315✕C3N
FamilyGear machines
TypeGear grinder
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

tip circle diameter max350φ
no.of teeth min/max5...140
rotary table load max200kp
grinding wheel diam. min/max270/350mm(200/280mm)
grinding wheel bore/width127/32mm(51/25mm)
speed of grinding wheel1900rpm(2280rpm)
adjustment of stroke position120mm
connected load approx8.5KW

Specification text

tip circle diameter max 350φ, root circle diameter min(13)30mm, no.of teeth min/max 5...140, rotary table load max 200kp, grinding wheel diam. min/max 270/350mm(200/280mm), grinding wheel bore/width 127/32mm(51/25mm), speed of grinding wheel 1900rpm(2280rpm), adjustment of stroke position 120mm, connected load approx 8.5KW, 5900
