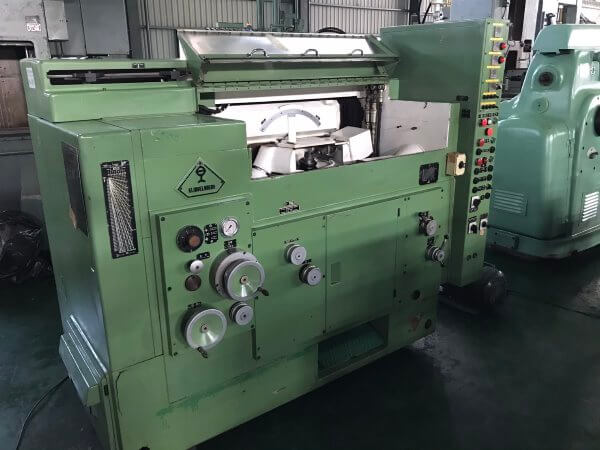

Hob Sharpener Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

9 photos

Machine

TitleHob Sharpener Machine
MakerKLINGELNBERG
ModelAGW-231
FamilyGear machines
TypeHob / cutter / broach sharpener
Weight4,300 kg
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Maximum outside diameter of hobs with helical flutes230mm(9.1/16")300mm
Maximum outside diameter of hobs with straight flutes250mm(9.7/8") 300mm
Maximum depth of flute50mm(2")
Minimum flute lead125
Maximum lead angle45°
Number of flutes3 to 45
Maximum grinding slide stroke475mm(18.3/4")
Minimum grinding wheel diameter150mm(6")
infinitely variable from0 to 16 m/min
Distance between center260~660mm
machine weight4,300 kg
machine size2000(L)×1600(W)×1700(H)

Specification text

Maximum outside diameter of hobs with helical flutes 230mm(9.1/16")300mm, Maximum outside diameter of hobs with straight flutes 250mm(9.7/8") 300mm, Maximum depth of flute 50mm(2"), Minimum flute lead 125, Maximum lead angle 45°, Number of flutes 3 to 45, Maximum grinding slide stroke 475mm(18.3/4"), Minimum grinding wheel diameter 150mm(6"), Grinding wheel speed,infinitely variable,from 1500 to 2700 r.p.m, grinding slide feed rate,infinitely variable from 0 to 16 m/min, Distance between center 260~660mm, machine weight 4,300 kg, machine size 2000(L)×1600(W)×1700(H)
