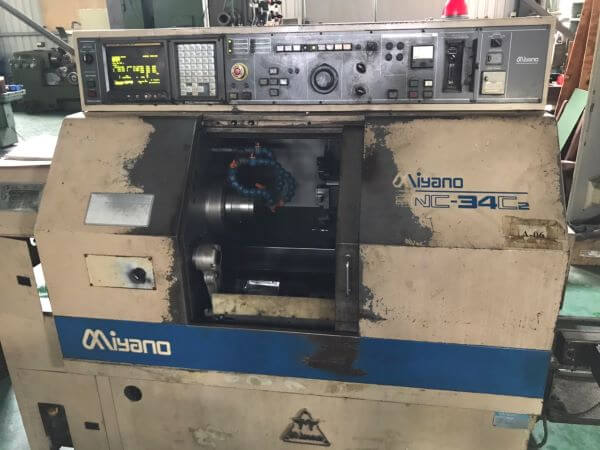

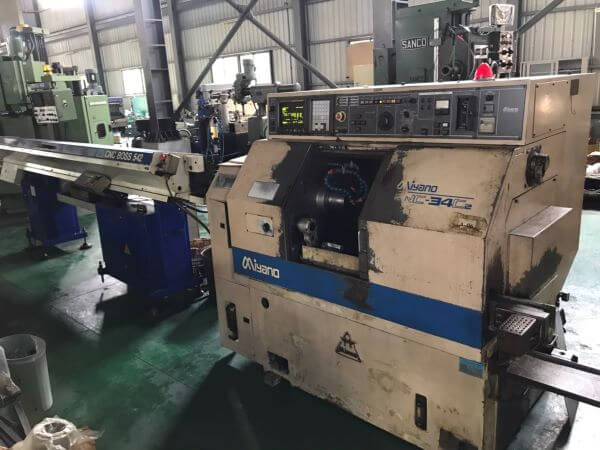

Miyano BNC-34-C2

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

5 photos

Machine

TitleMiyano BNC-34-C2
MakerMiyano
ModelBNC-34-C2
FamilyLathes & turning
TypeCNC auto / Swiss-type lathe
Weight2,300 kg
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Max work length for bar work150
for chuck work80
bar capacity round for main spindle12~34φ
spindle speed200~6000rpm
Spindle Nose36
Hydraulic cylinder X axis100
Z axis185
Turret stations8
Main motor3.7/5.5kw
machine weight2,300 kg

Specification text

Max work length for bar work 150, for chuck work 80, bar capacity round for main spindle 12~34φ, spindle speed 200~6000rpm, Spindle Nose 36, Hydraulic cylinder X axis 100, Z axis 185, Turret stations 8, Main motor 3.7/5.5kw, machine weight 2,300 kg
