Miyano BNC-34-C3

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

3 photos

Machine

TitleMiyano BNC-34-C3
MakerMiyano
ModelBNC-34-C3
FamilyLathes & turning
TypeCNC auto / Swiss-type lathe
Weight2,300 kg

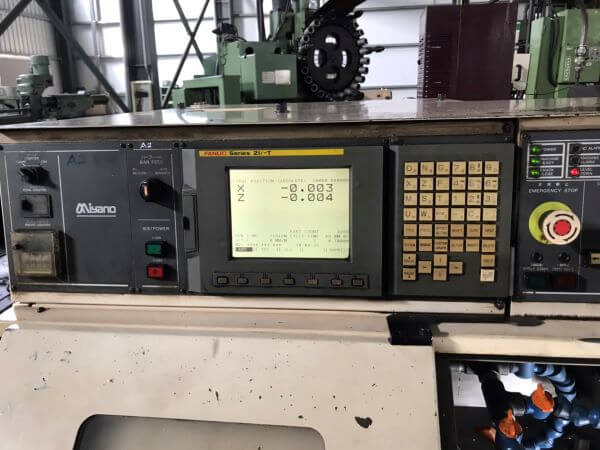

ControlFanuc 21iT
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Max work length for bar work150
for chuck work80
bar capacity round for main spindle12~42φ
spindle speed range170~5000rpm
spindle nose43
Hydraulic cylinder X axis100
Z axis185
Turret stations8
Main motor5.5/7.5KW
weight2,300 kg

Specification text

Max work length for bar work 150, for chuck work 80, bar capacity round for main spindle 12~42φ, spindle speed range 170~5000rpm, FANUC 21iT, spindle nose 43, Hydraulic cylinder X axis 100, Z axis 185, Turret stations 8, Main motor 5.5/7.5KW, weight 2,300 kg
