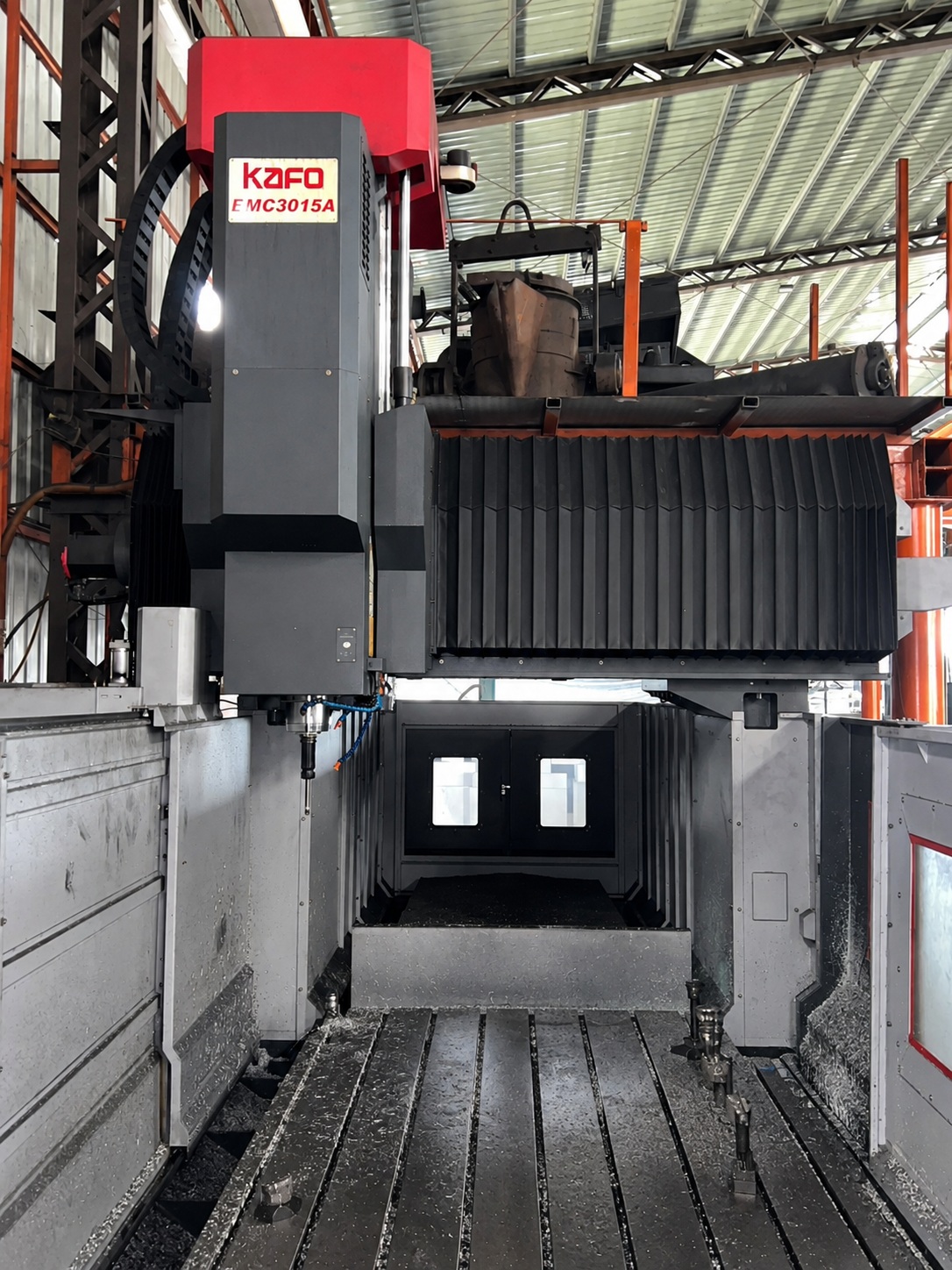

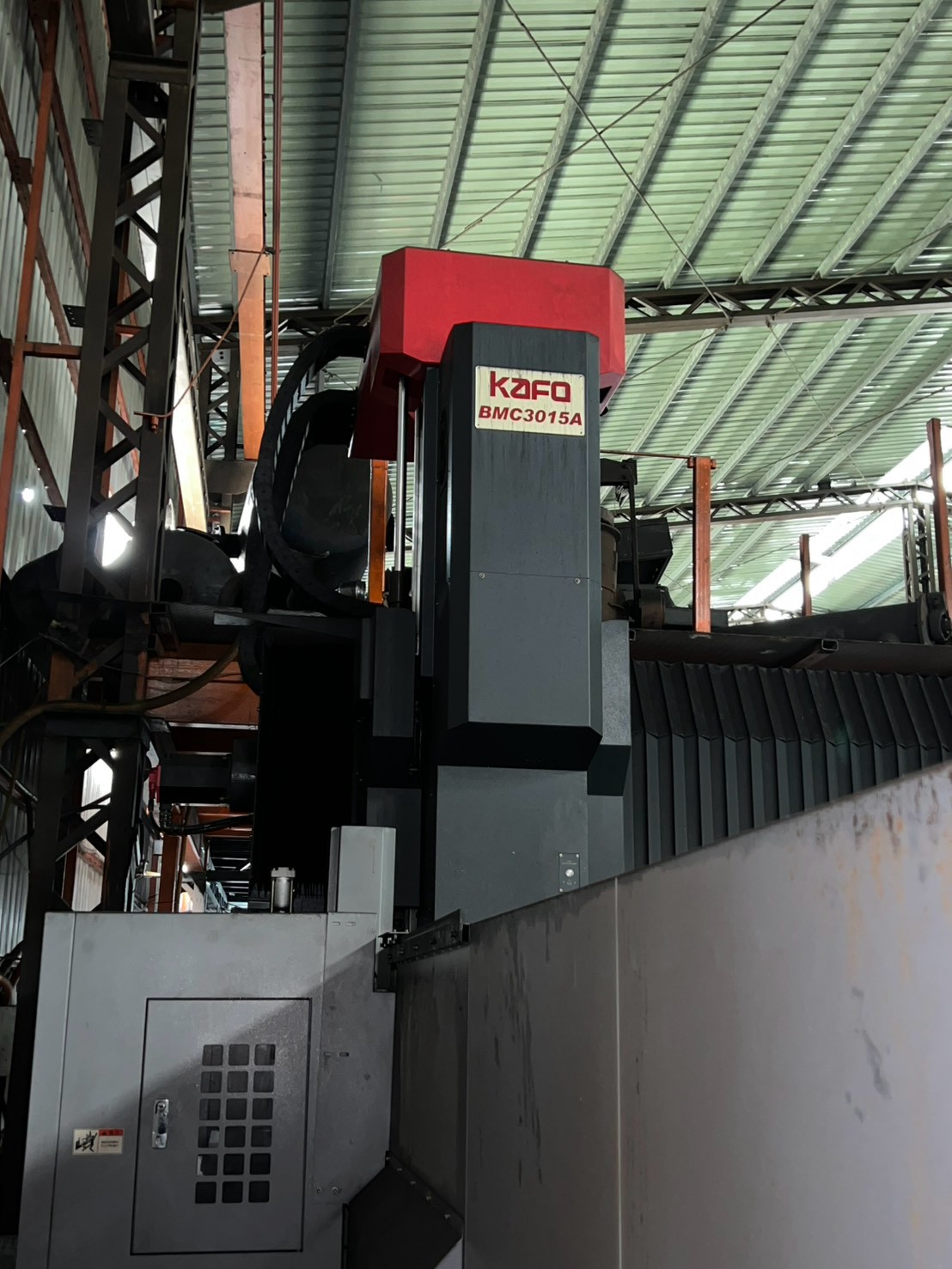

KAFO CNC Double Column Machining Centre

Details being confirmed with supplier

Price on enquiry

Currently in Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

14 photos

Machine

TitleKAFO CNC Double Column Machining Centre
MakerKAFO
ModelBMC-3015A
FamilyMachining centres
TypeDouble-column (bridge) machining centre
X travel3100 mm
Y travel1500 mm
Z travel800 mm
Table3000 × 1400 mm
Weight26,500 kg (Nameplate)
Year2020
VoltageSupplied 3-phase 220V 50/60Hz; conversion to 415V 50Hz required for Australia.
LocationAt the owner's site in Taiwan
PricePrice on enquiry
Table (mm)3000x1400

Not yet confirmed: condition.

Specification

X/Y/Z axis travel3,100/1,500/800 mm

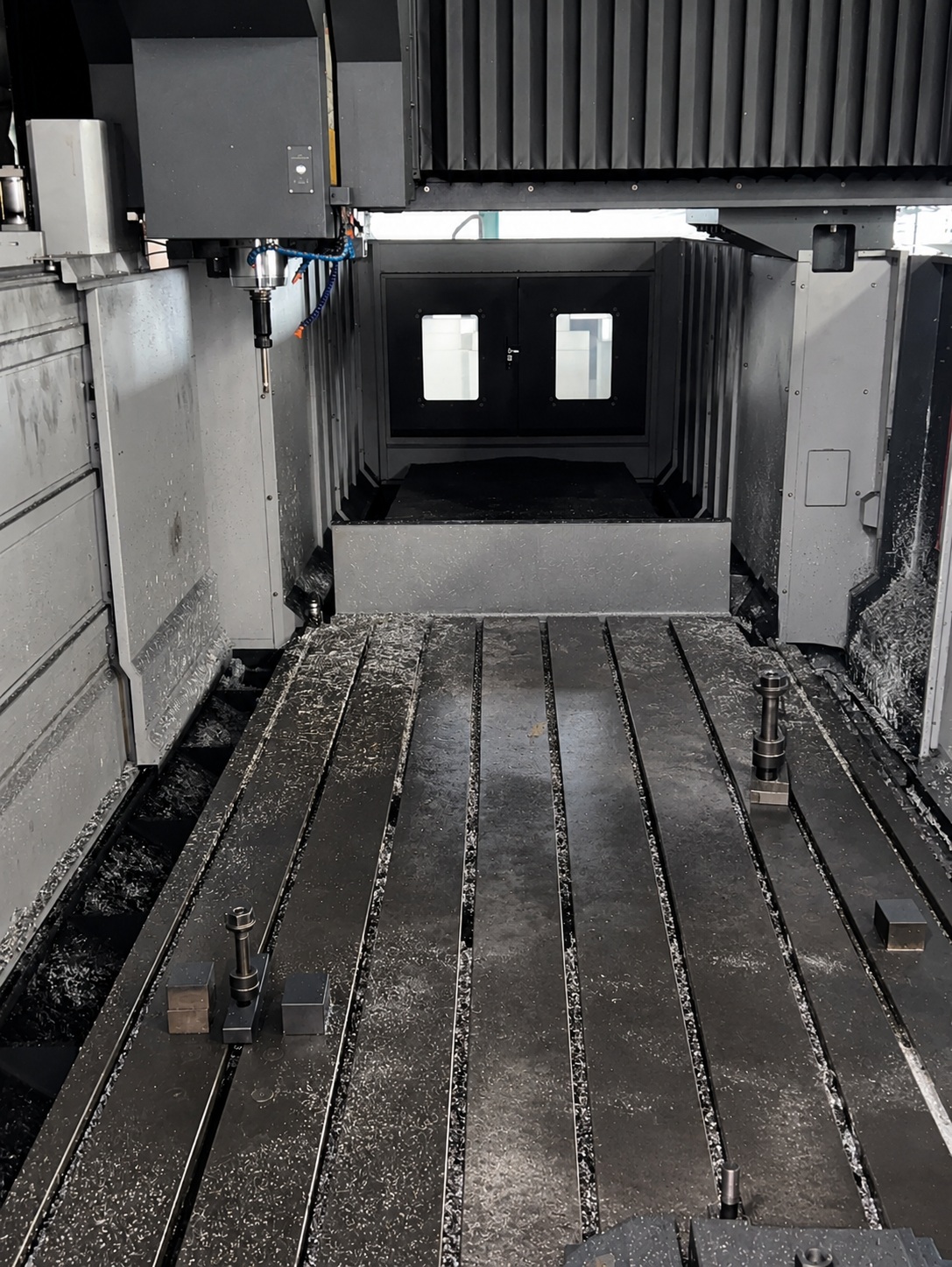

Table size3,000x1,400 mm

Specification text

X/Y/Z axis travel: 3,100/1,500/800 mm
Table size: 3,000x1,400 mm

Maker standard specification — confirm on this unit

BMC-3015 base model

Travel X/Y/Z3100/1500/800 mm
Table3000×1400 mm
Table load7000 kg
Between columns1670 mm
Rapids20/20/15 m/min

Seller's description, not verified

Year: 2020
Model: BMC-3015A

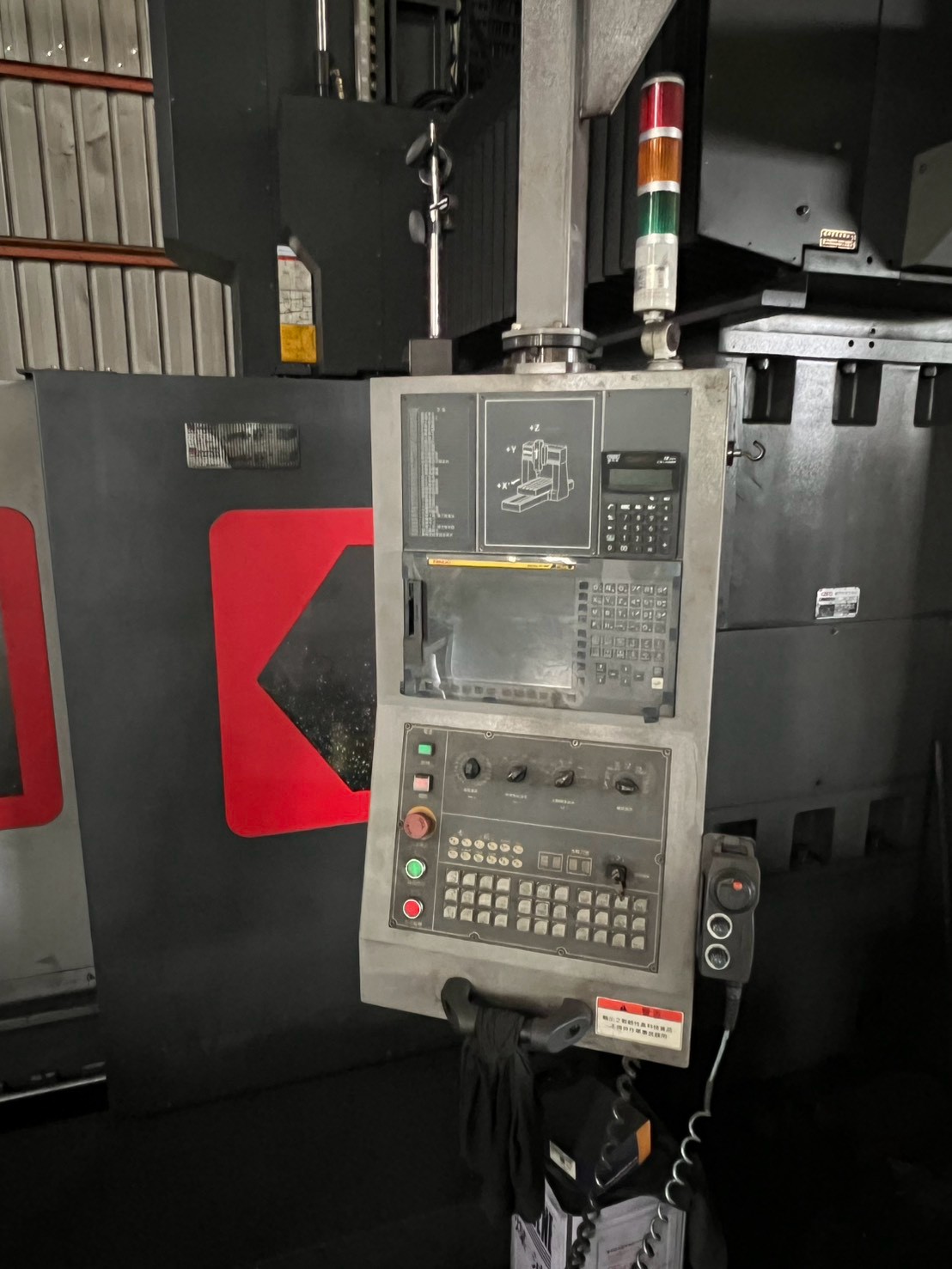

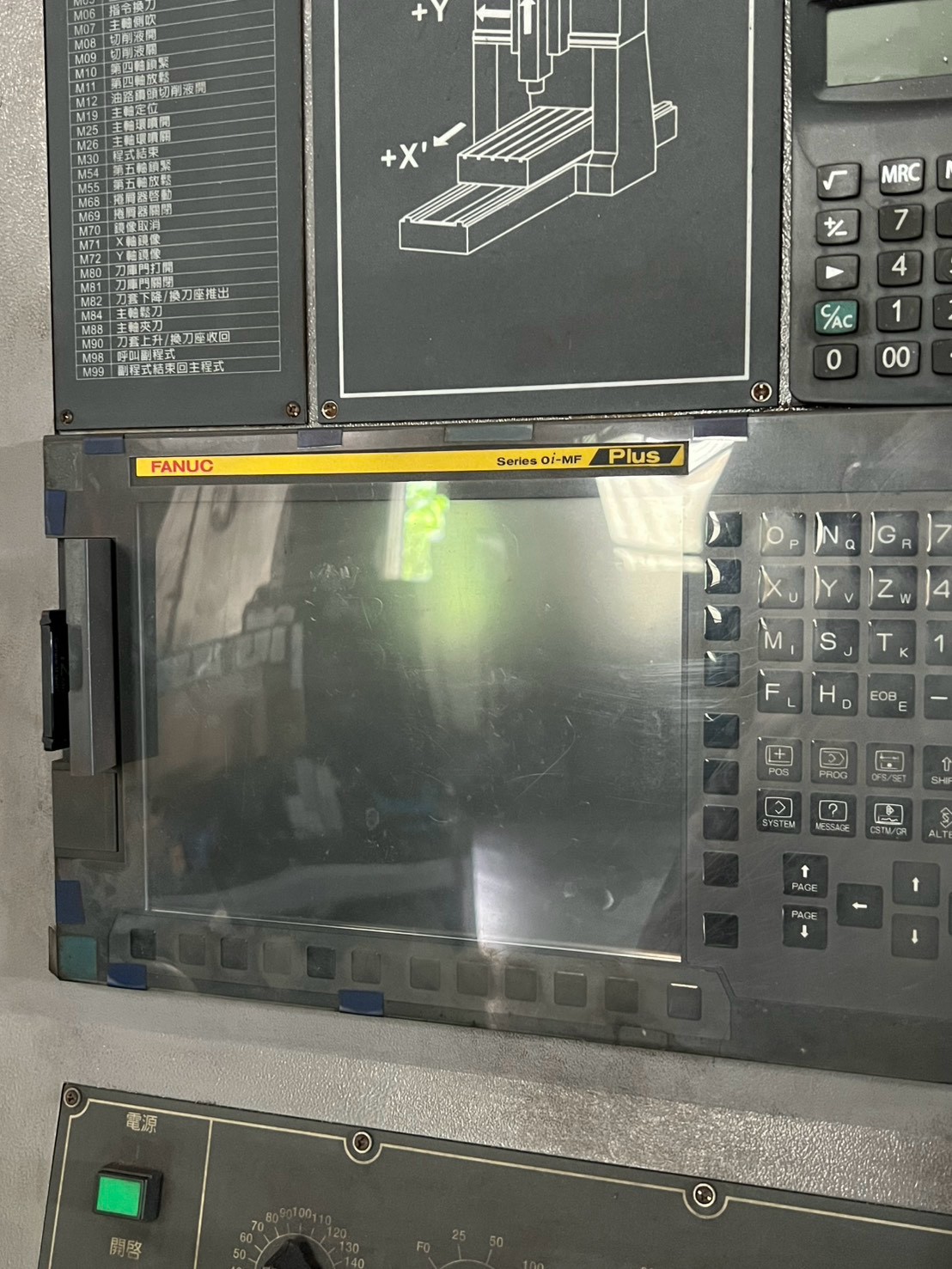

Controller: FANUC 0i-MF PLUS(10.4”LCD)
Spindle nost to table: 150-950mm

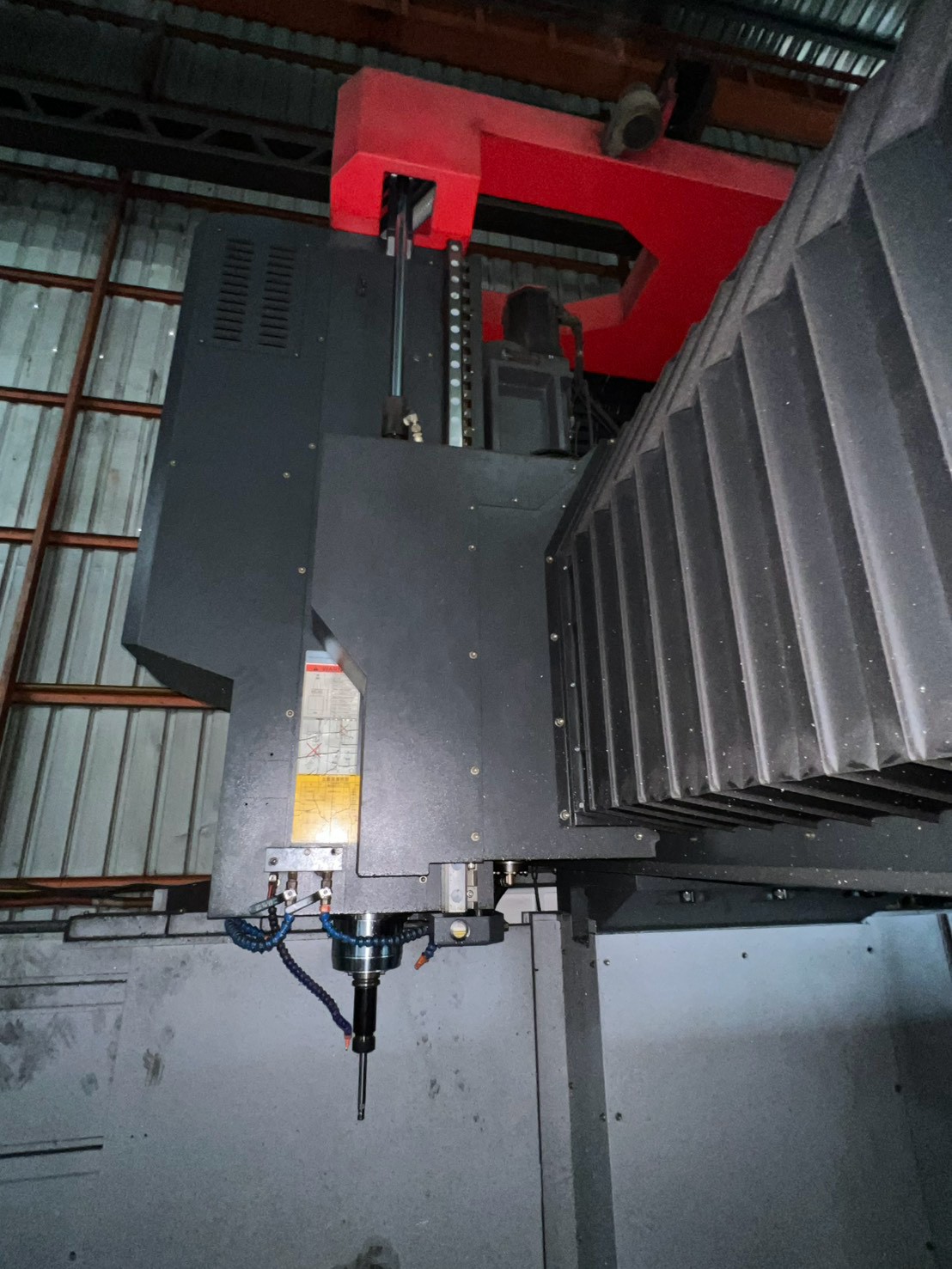

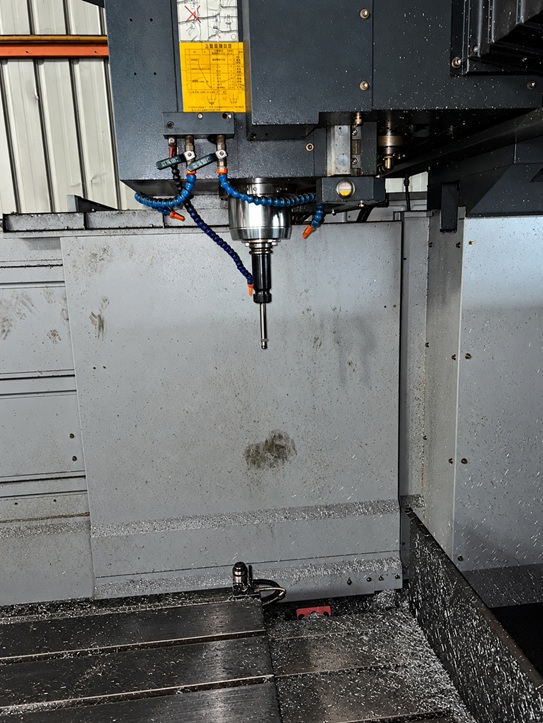

Spindle speed: 12,000 rpm (Direct type)
Spindle motor: FANUC α18/12000i 15/18.5 kw
X/Y/Z axes linear guide way
Heidenhain 3 axis linear scale + air blast
BLUM tool measuring system
Air thru spindle

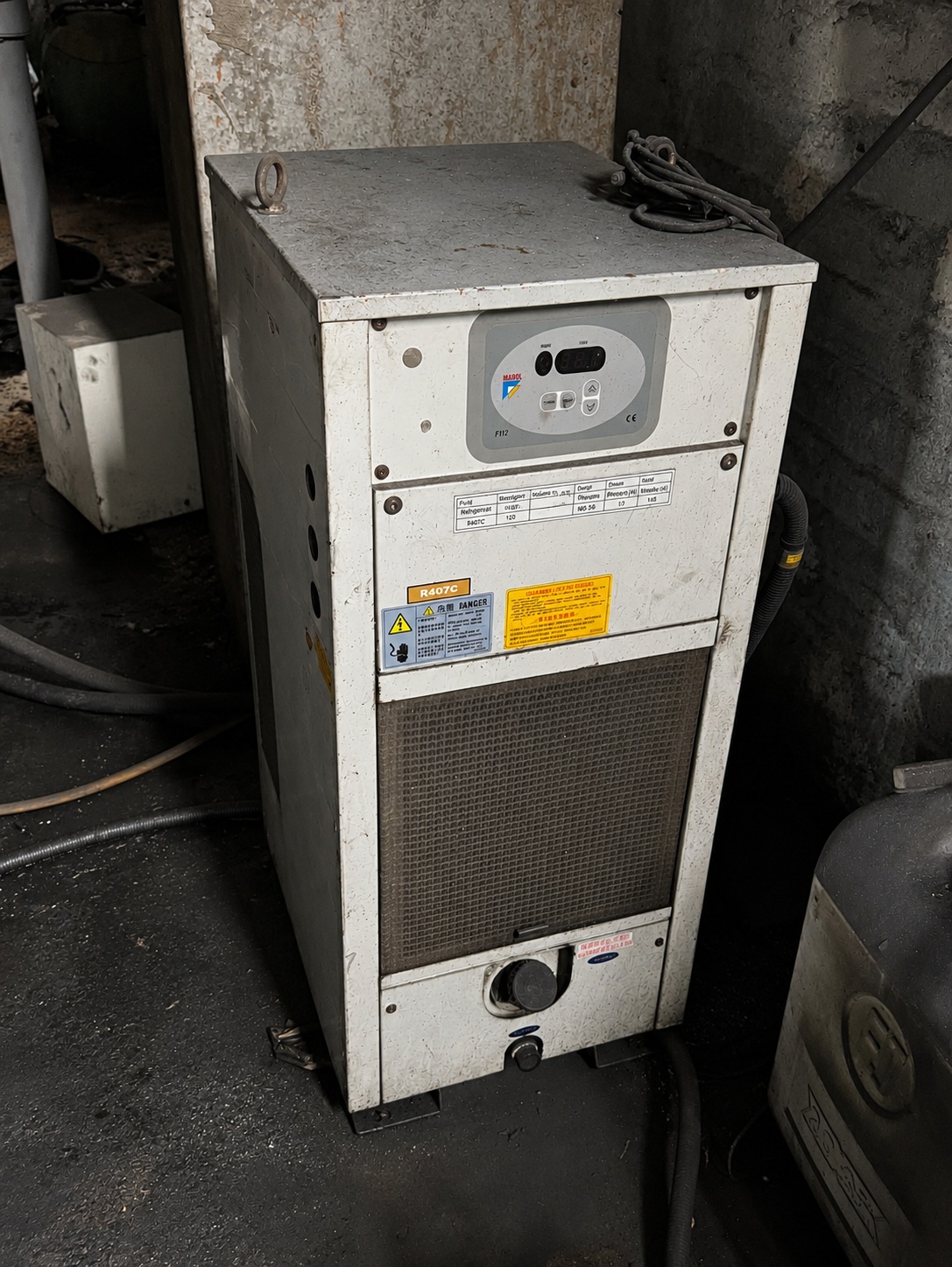

Spindle oil cooler

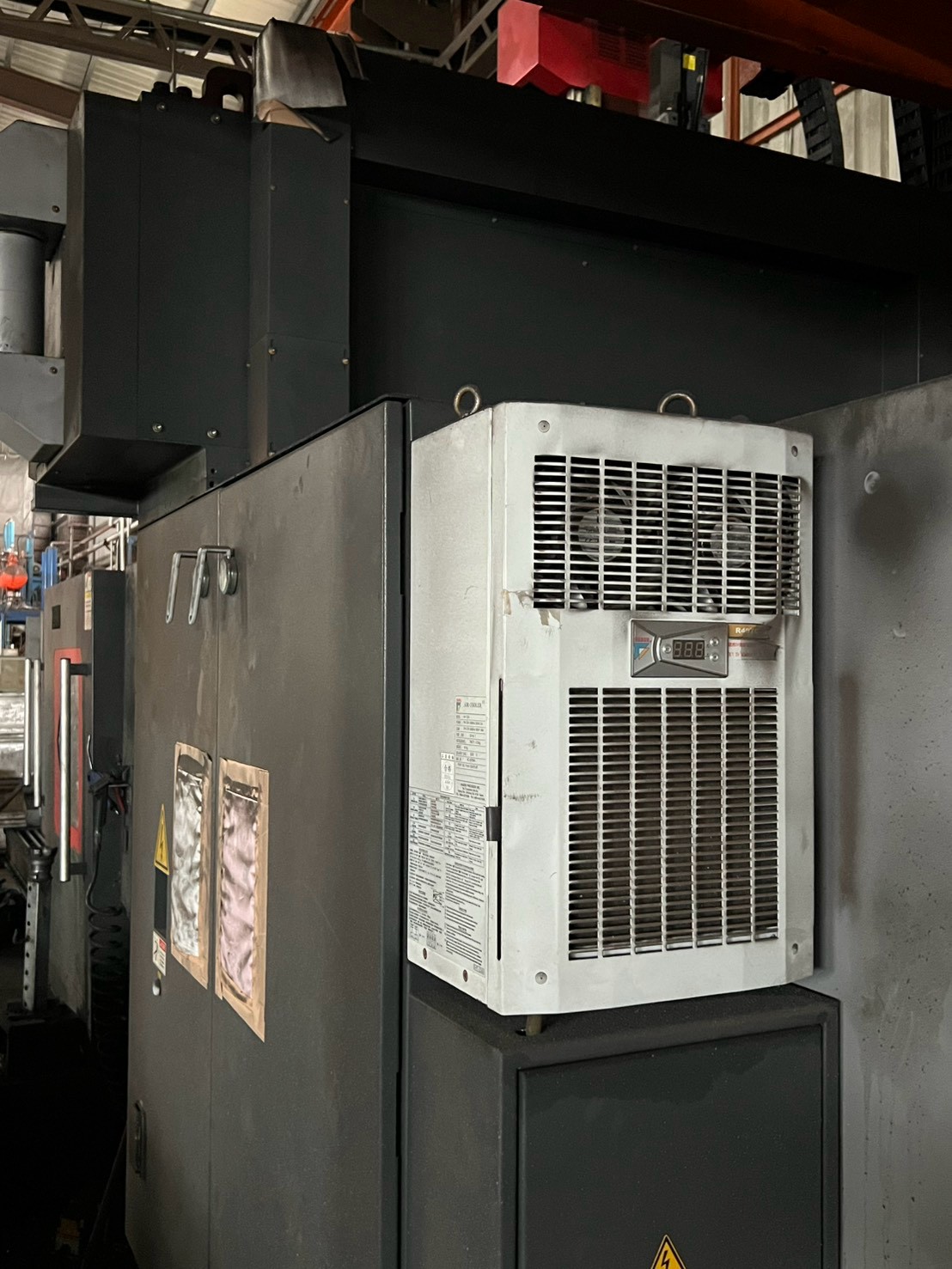

Air conditioner
Chip conveyor + bucket
Machine size: 8200*3300*3600mm

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
