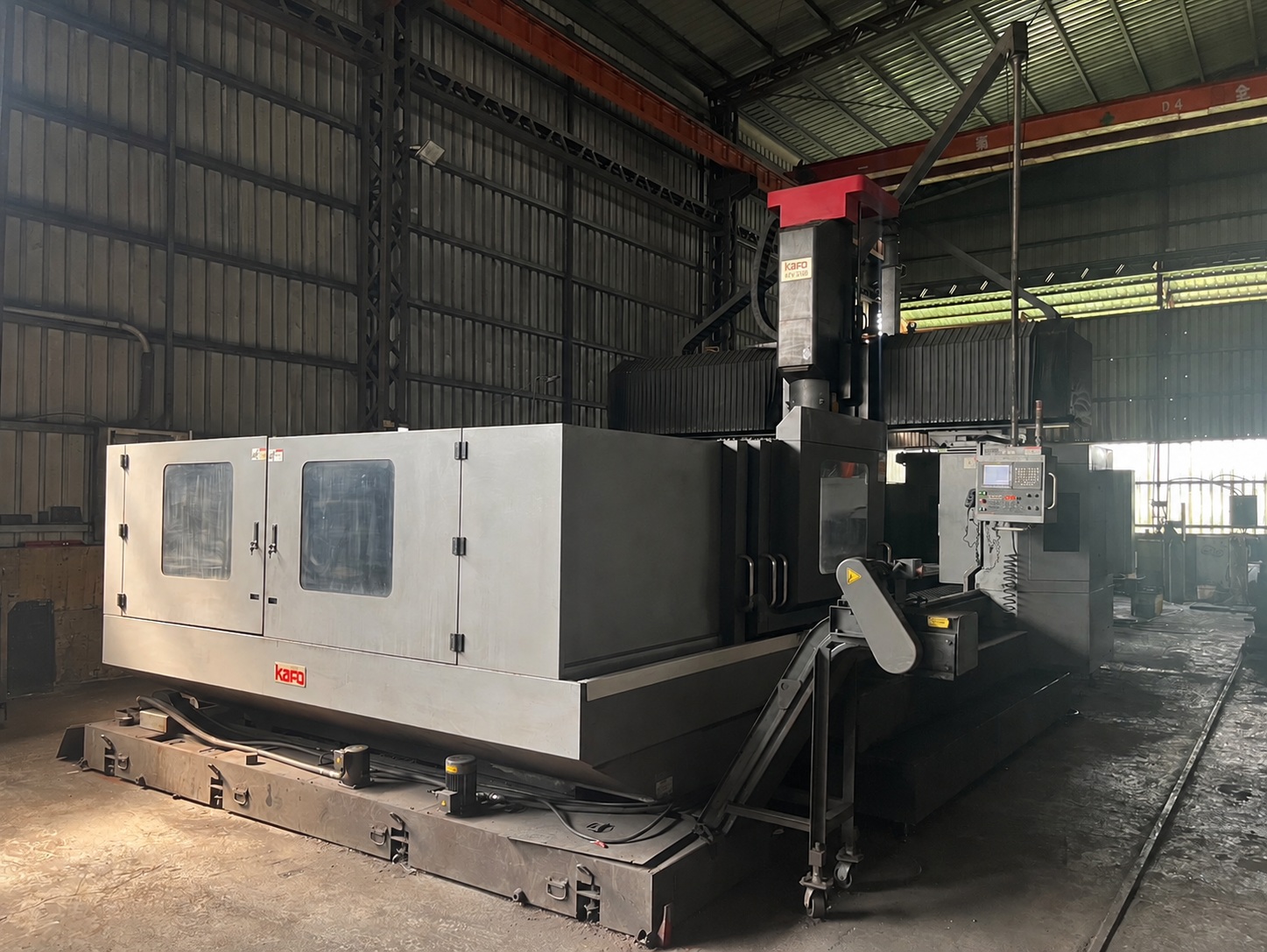

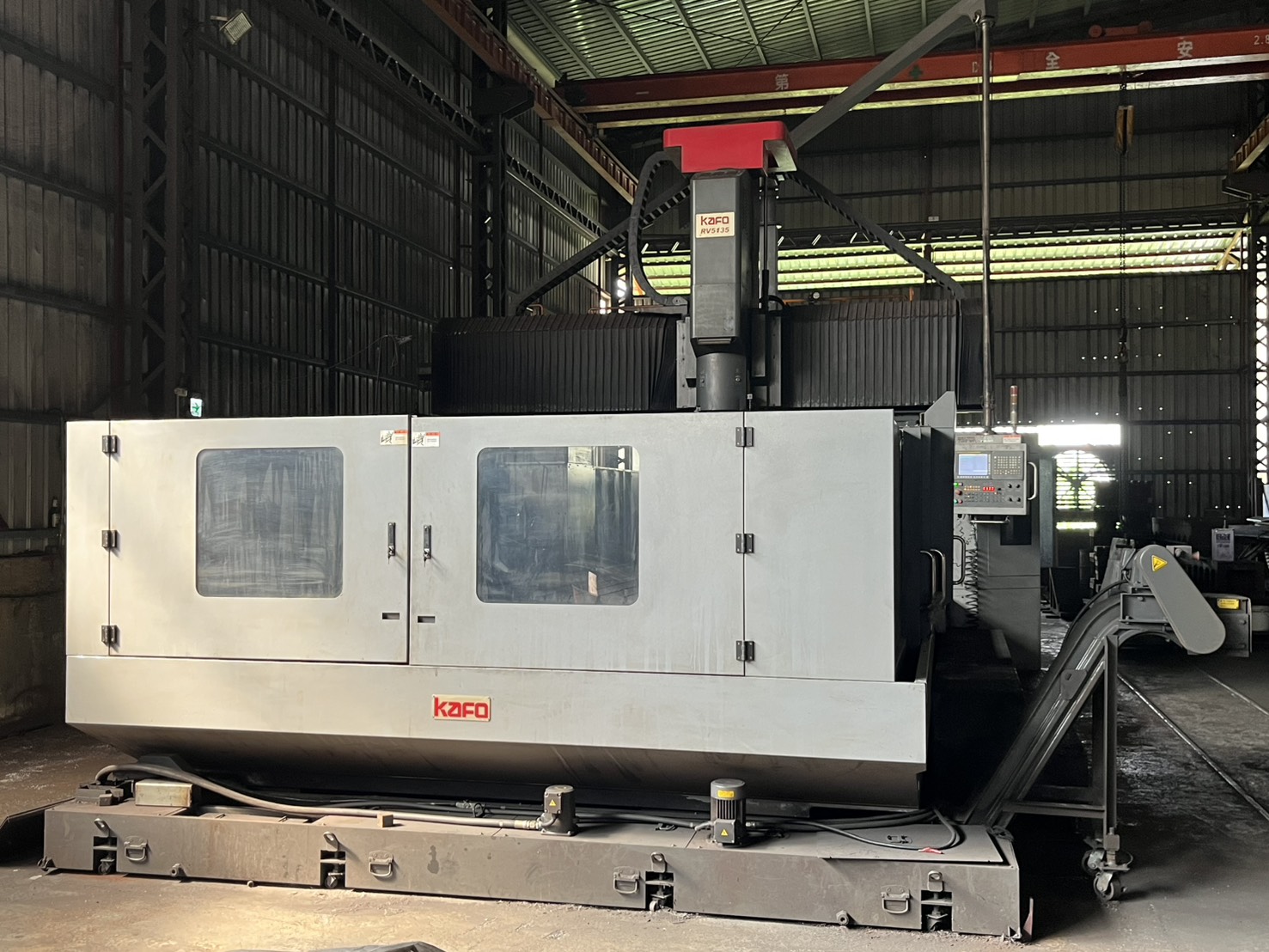

KAFO CNC 5 Face Double Column Machining Centre

Details being confirmed with supplier

Price on enquiry

Currently in Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

KAFO CNC 5 Face Double Column Machining Centre — 12 photos

Machine

Title	KAFO CNC 5 Face Double Column Machining Centre
Maker	KAFO

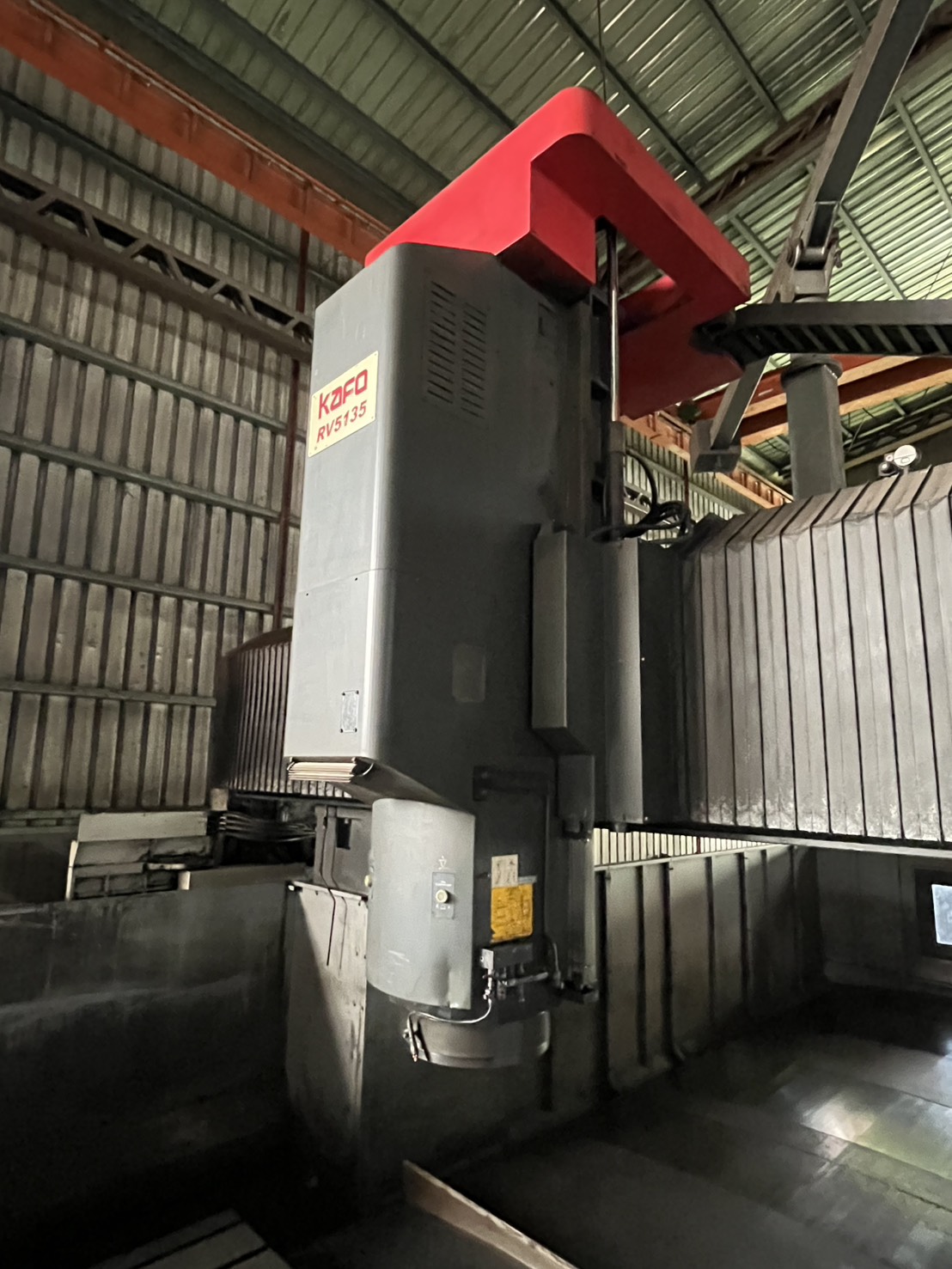

Model	RV-5135
Family	Machining centres
Type	Double-column (bridge) machining centre
X travel	5100 mm
Y travel	3500 mm
Z travel	1100 mm
Weight	48,000 kg (Nameplate)
Year	2016
Voltage	Supplied 3-phase 220V 50/60Hz; conversion to 415V 50Hz required for Australia.
Location	At the owner's site in Taiwan
Price	Price on enquiry
Table (mm)	5000x2100

Not yet confirmed: condition.

Specification

X/Y/Z axis travel	5,100/3,500/1,100mm

Specification text

X/Y/Z axis travel: 5,100/3,500/1,100mm

Maker standard specification — confirm on this unit

Travel X/Y/Z	5100/3500/1100 mm
Table	5000×2100 mm
Between columns	2750 mm
Spindle	BBT50

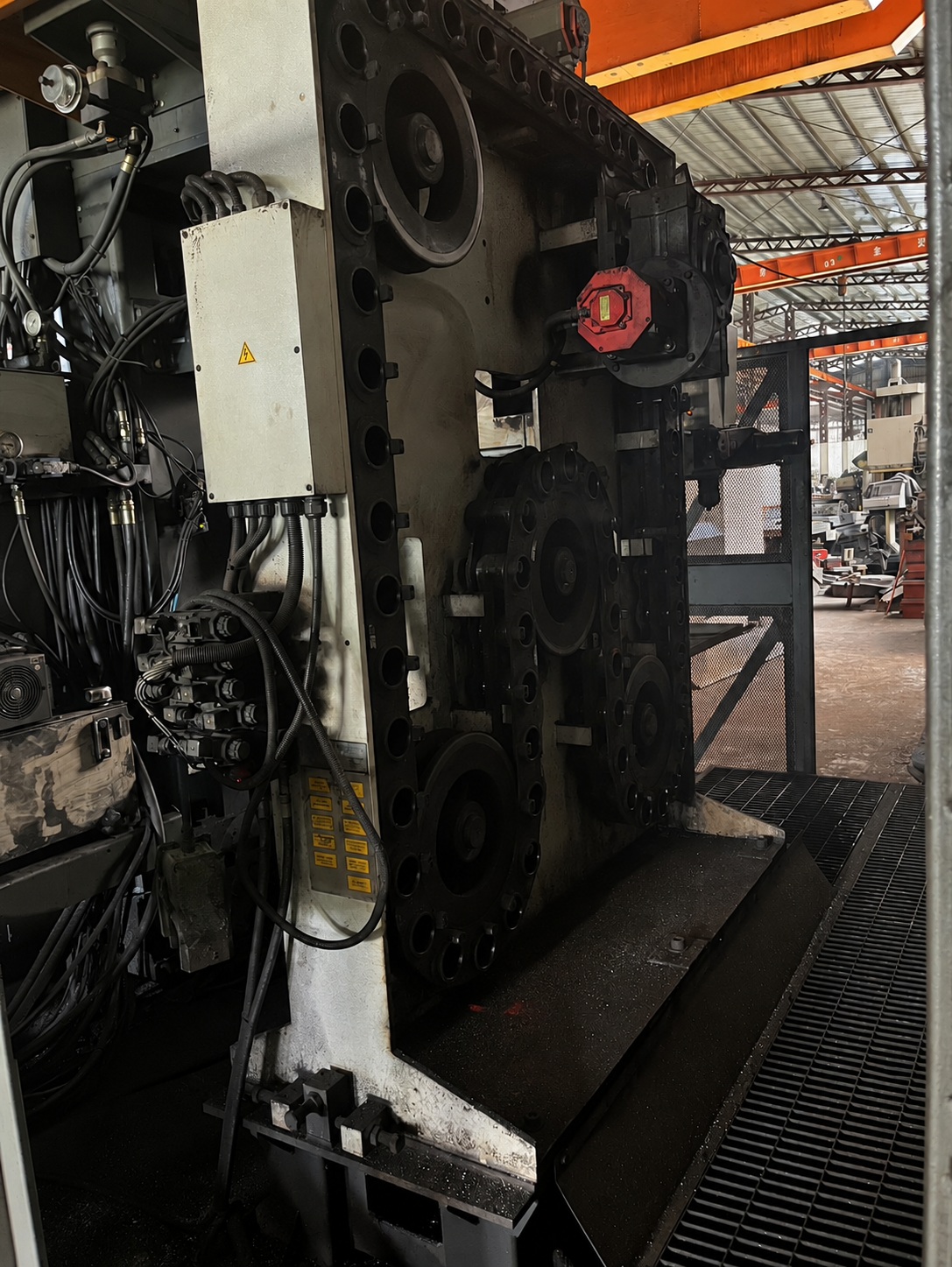

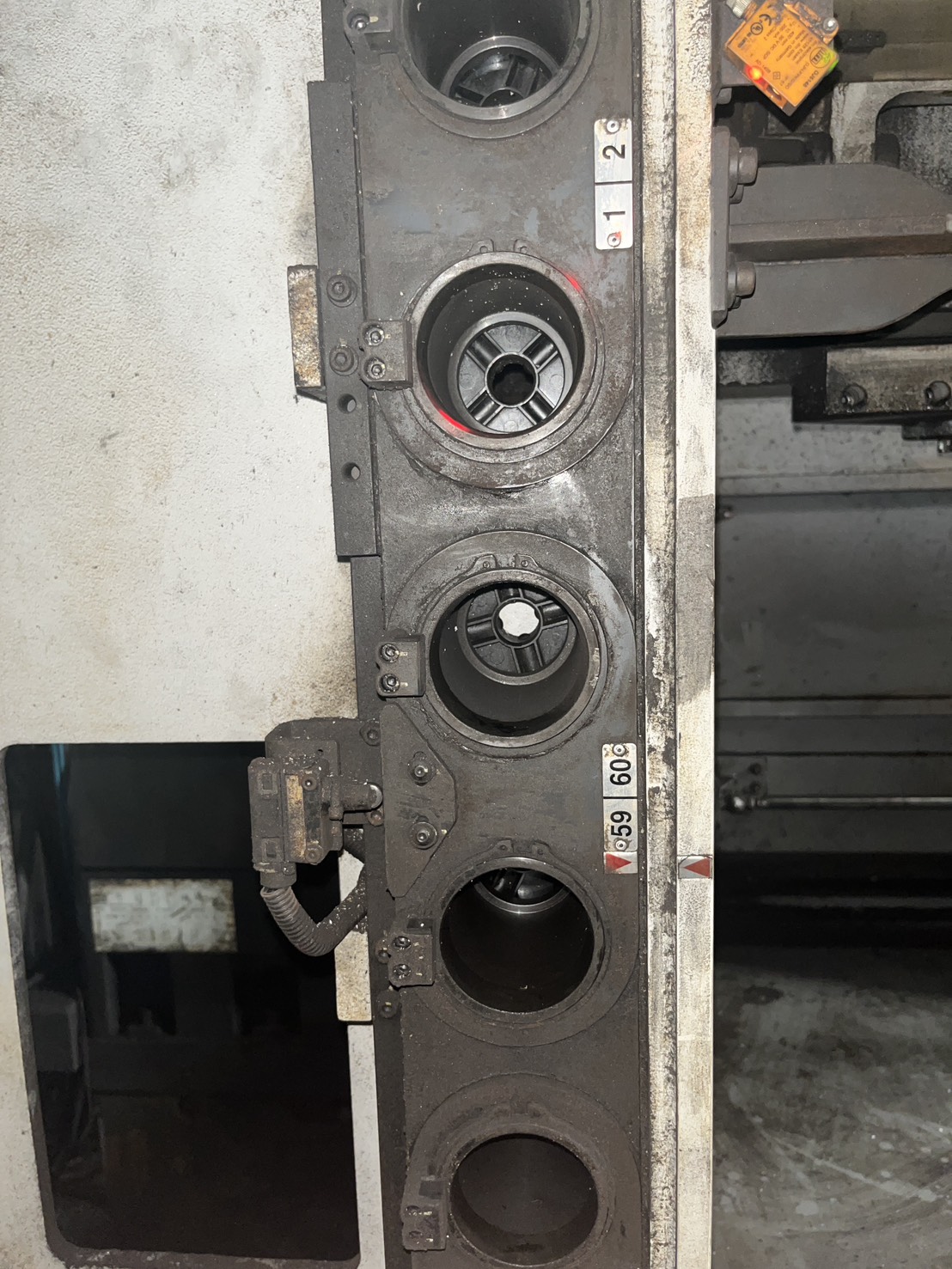

Magazine	30-tool vertical or 60-tool vertical/horizontal
Rapids	15/20/15 m/min

Seller's description, not verified

Year: 2016
Model: RV-5135

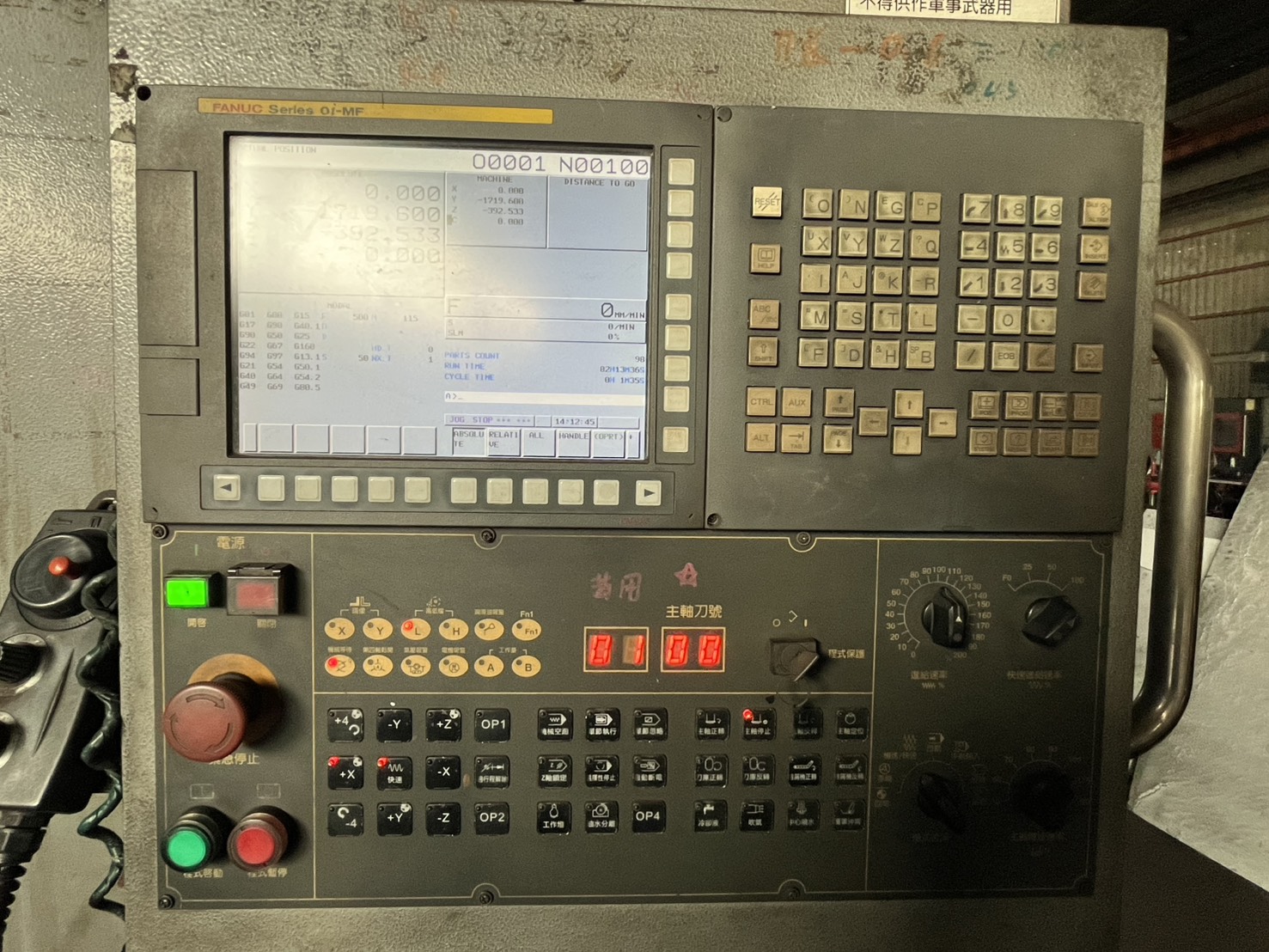

Controller: FANUC 0iMF (10.4” LCD)
Spindle nose to table: 200-1,300mm
Door height: 1,500mm
Spindle speed: 6,000rpm (Gear driven)
Z axis box way, X/Y axis linear guide way

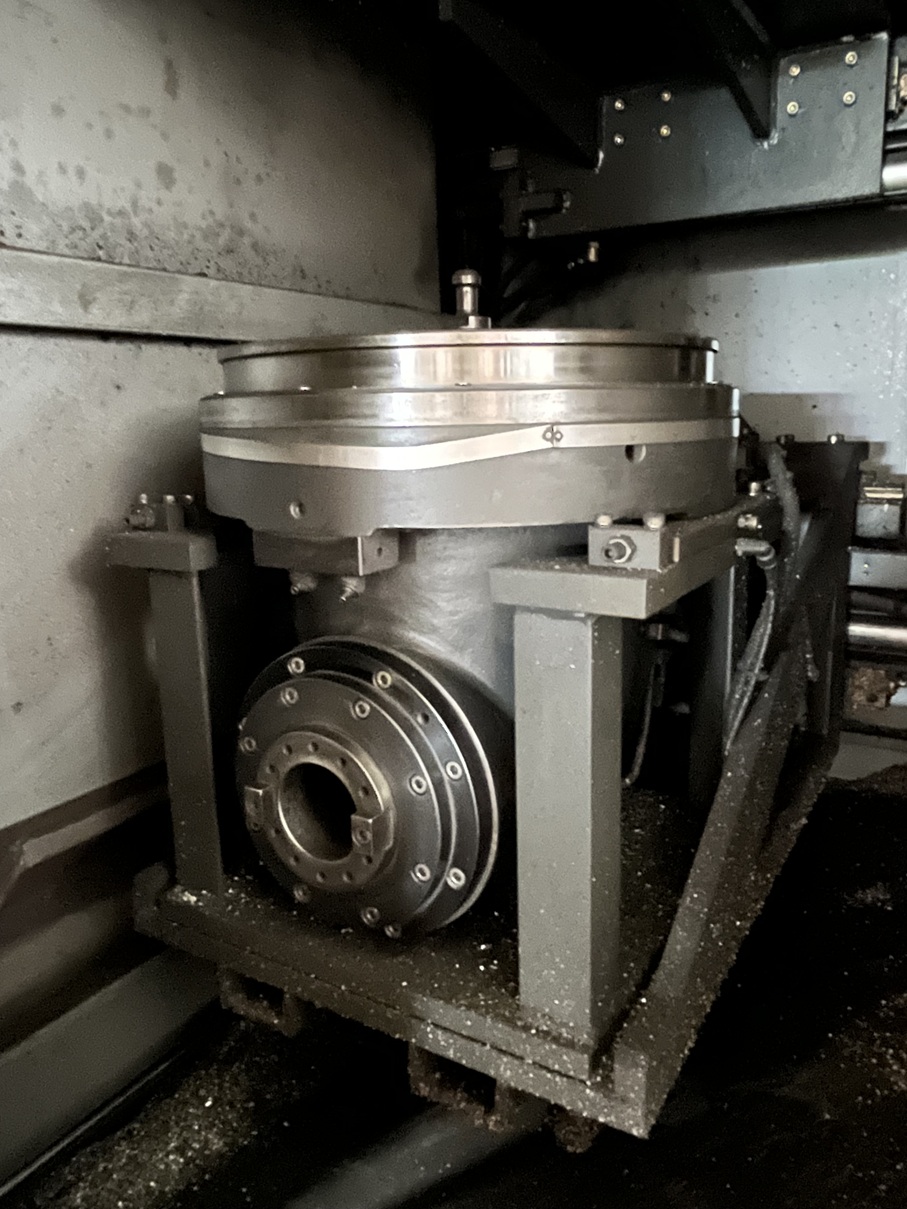

Auto head storage: 90 degree head
Coolant thru spindle 50bar + filter
X/Y/Z axes Heidenhain linear scales
X/Y/Z axes ballscrew cooling
Air blast thru spindle

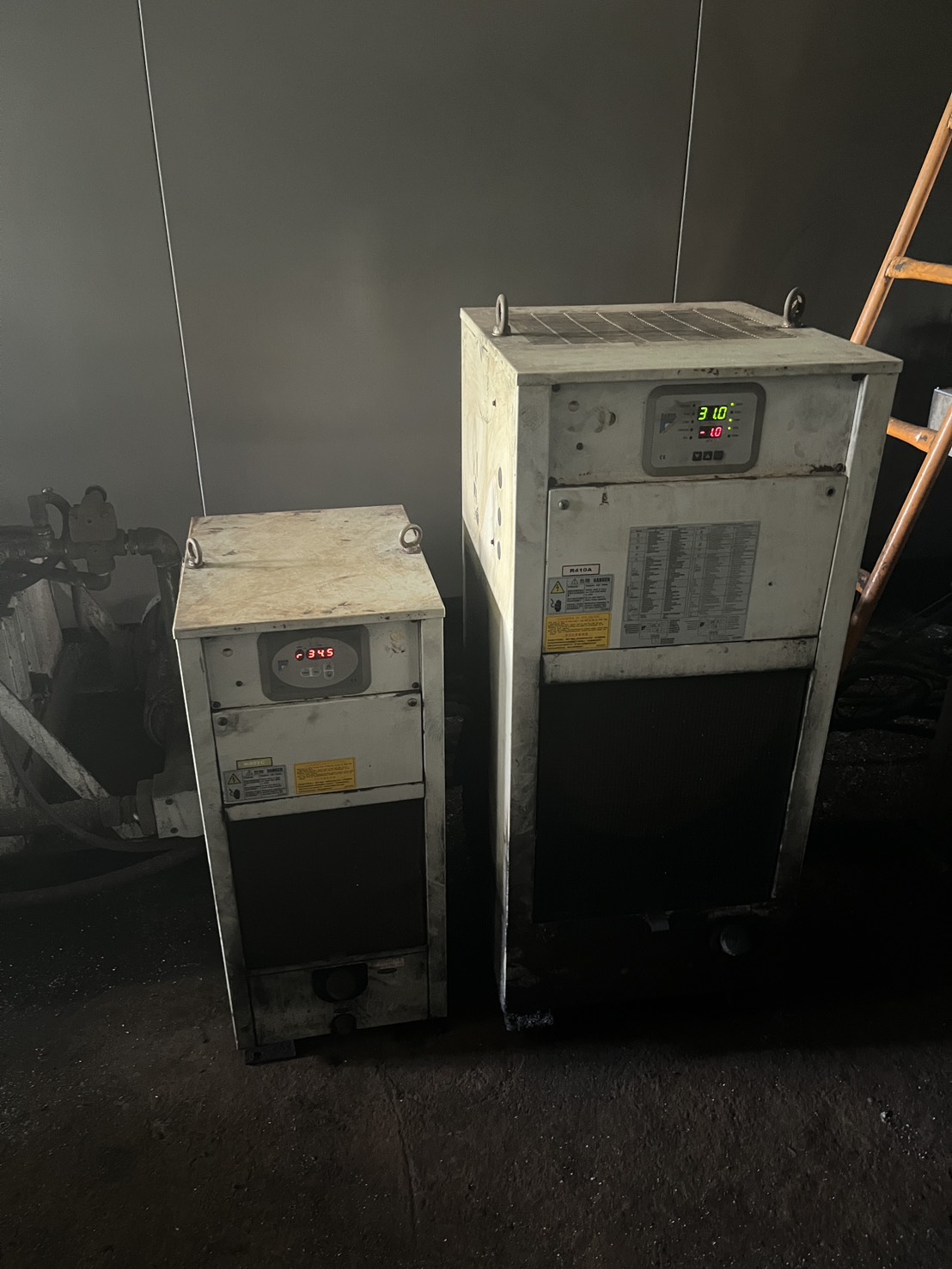

Spindle oil cooler
Air conditioner
Oil skimmer
Chip conveyor
Machine size: 13000*8000*5500mm
