NC Hypoid Gear Generator

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Machine

Title	NC Hypoid Gear Generator
Maker	GLEASON(USA)
Model	NO.106 (NC-TYPE)
Family	Gear machines
Type	Bevel / hypoid gear machine (generators, lappers)
Weight	7,500 kg

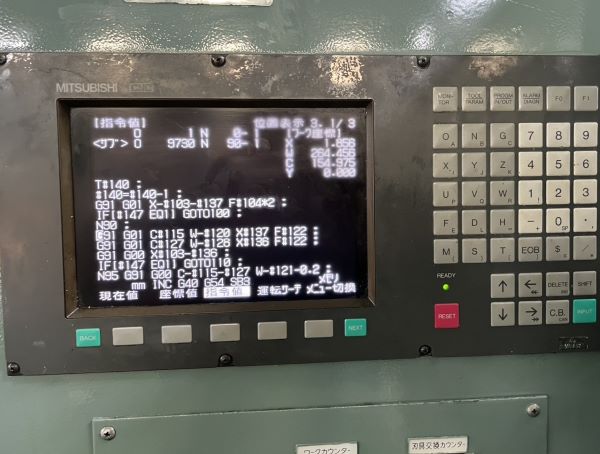

Control	Mitsubishi 3
Location	Taichung, Taiwan
Price	Price on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Max.cone distance	107 mm
1 to 1 ratio	152 mm
Max. face width	31.7 mm
Max depth	15.8 mm
Depth of taper	152.4 mm
Distance from machine center to nose of spindle (maximum)	31.7 mm
machine weight	7,500 kg

Specification text

Mitsubishi 3 axis(Mldas 64), Max.cone distance: 107 mm, Max. pitch diameter (30° spiral angal): 10 to 1 ratio: 215 mm, 2 to 1 ratio: 190: mm, 1 to 1 ratio: 152 mm, Max. face width: 31.7 mm, Max depth: 15.8 mm, Diametral pitch, coarsest: 6.35 Mod., WORK SPINDLE Diameter of taper hole at large end: 23 mm Taper per foot: 15.5 mm, Depth of taper: 152.4 mm, Diameter of hole through spindle: 61.9 mm Work Head Settings Offset above center, maximum:76.2 mm, Offset below center, maximum: 76.2 mm, Distance from machine center to nose of spindle (maximum): 31.7 mm, machine weight 7,500 kg
