NC Hypoid Gear Generator

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

5 photos

Machine

TitleNC Hypoid Gear Generator
MakerGLEASON(USA)
ModelNO.116 (NC-TYPE)
FamilyGear machines
TypeBevel / hypoid gear machine (generators, lappers)
Weight10,750 kg

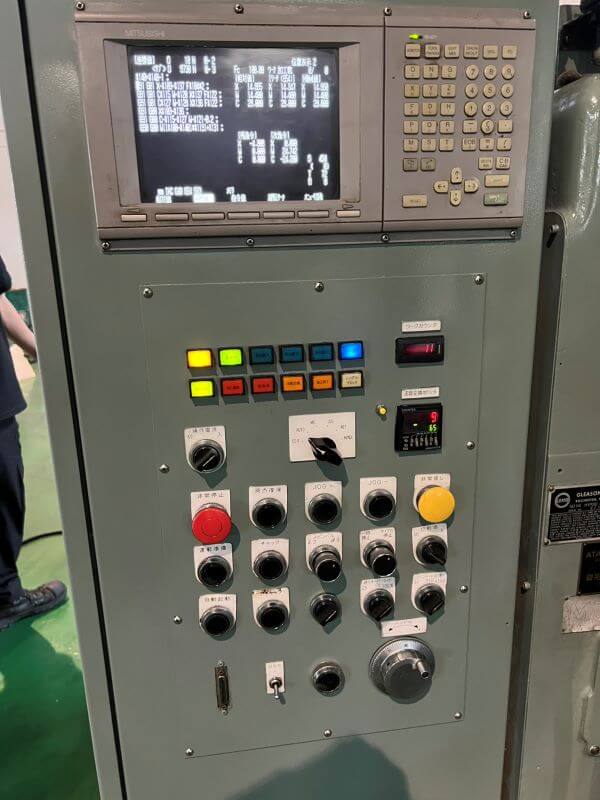

ControlMitsubishi 3
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Diametral pitch12.7MOD
Cone distance (30° spiral angle and12" cutter) 230mm
Work head angle12°~90°
Maximum gear pitch diameter 101 (460mm)
Nmber of teeth5~150mm
Diameter of taper hole at large end100mm
Taper per foot15mm
Depth of taper150mm
Diaameter of hole through spindle78mm
Cutter speeds17~115rpm
Net weight10,750 kg

Specification text

Mitsubishi 3 Axis, Diametral pitch 12.7MOD, Cone distance (30° spiral angle and 12" cutter) 230mm, Work head angle 12°~90°, Maximum gear pitch diameter 10:1 (460mm), 2:1(406mm), 1:1(324mm), Face width (maximum)70mm, Nmber of teeth 5~150mm, Diameter of taper hole at large end 100mm, Taper per foot 15mm, Depth of taper 150mm, Diaameter of hole through spindle 78mm, Cutter speeds 17~115rpm, Feed 9~80 seconds, Net weight 10,750 kg
