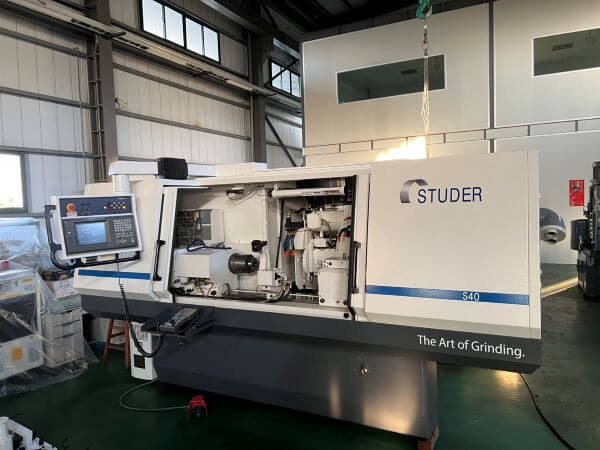

CNC Universal Cylindrical Grinding Machine (for External and Internal Grinding)

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

13 photos

Machine

TitleCNC Universal Cylindrical Grinding Machine (for External and Internal Grinding)
MakerSWITZERLAND STUDER
ModelS40 CNC
FamilyGrinding machines
TypeCylindrical grinder (incl. universal, angular, roll)
Weight5,100 kg

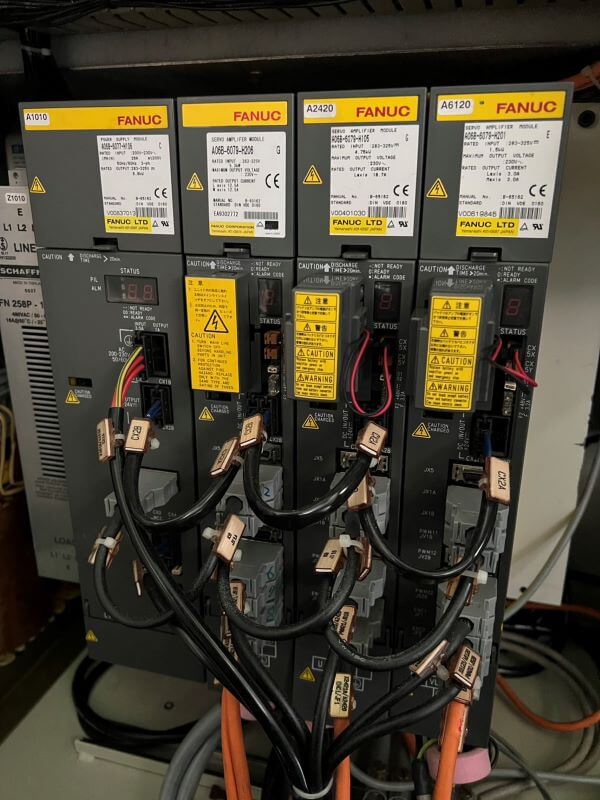

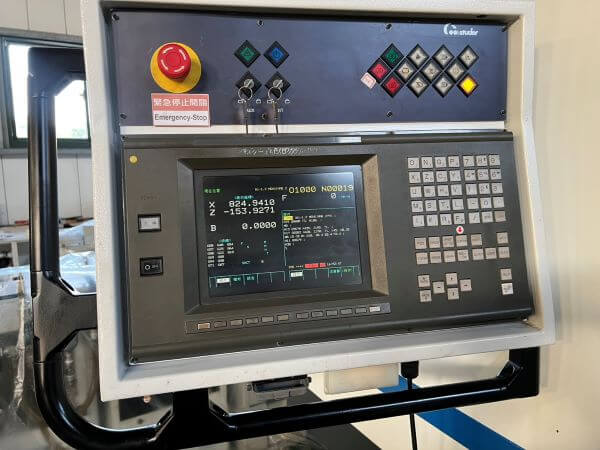

ControlFanuc 16GC
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Center height175
center distance1000
table max travel1050
max swivel of table8.5°
wheel head slide max travel275
grinding wheel dia×width×boreleft 400×80×127
wheel spindle main motor7.5KW
TAPER MT5
Universal work head swing range0~90°
power requirement spindle3KW
travel of BAVR of bavr35mm
control FANUC16GC
total power30KW
weight5,100 kg

Specification text

Center height 175, center distance 1000, table max travel 1050, max swivel of table 8.5°, wheel head slide max travel 275, grinding wheel dia×width×bore: left 400×80×127, right: 400×40×127, wheel spindle main motor 7.5KW, speed 1670~2110rpm, workhead: work head: speed range 30~750rpm, TAPER MT5, Universal work head swing range 0~90°, power requirement spindle 3KW, tailstock: fitting taper MT3, travel of BAVR of bavr 35mm, control FANUC 16GC, total power 30KW, weight 5,100 kg
