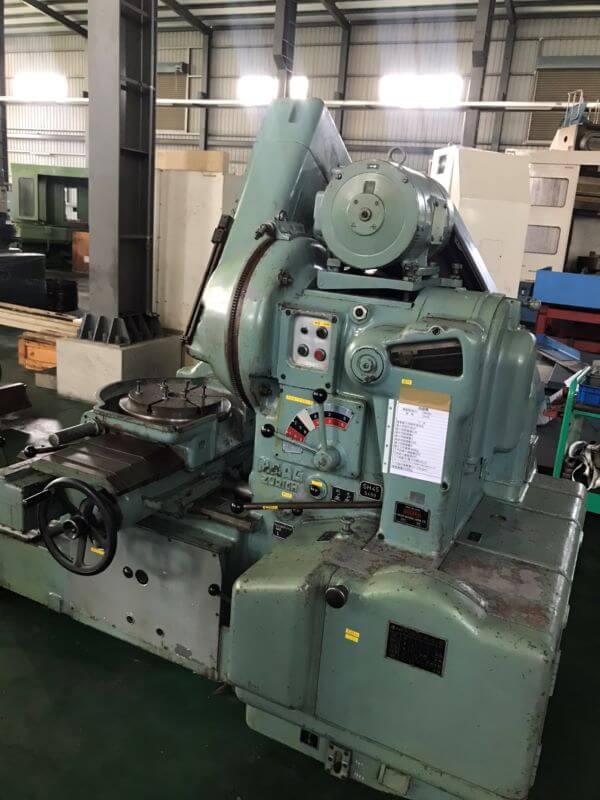

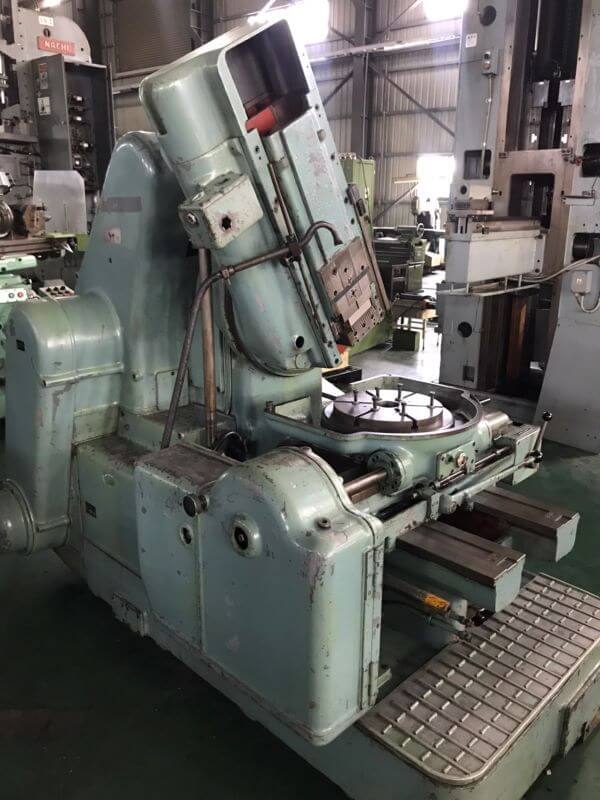

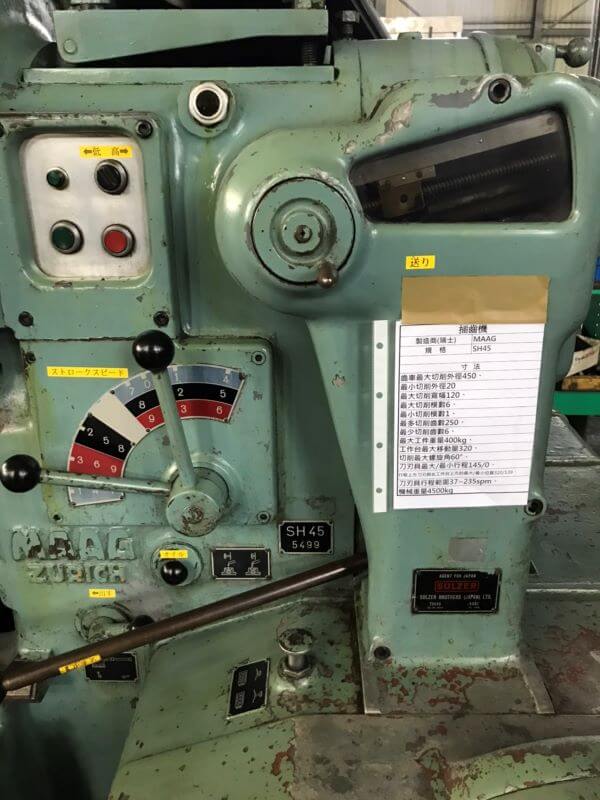

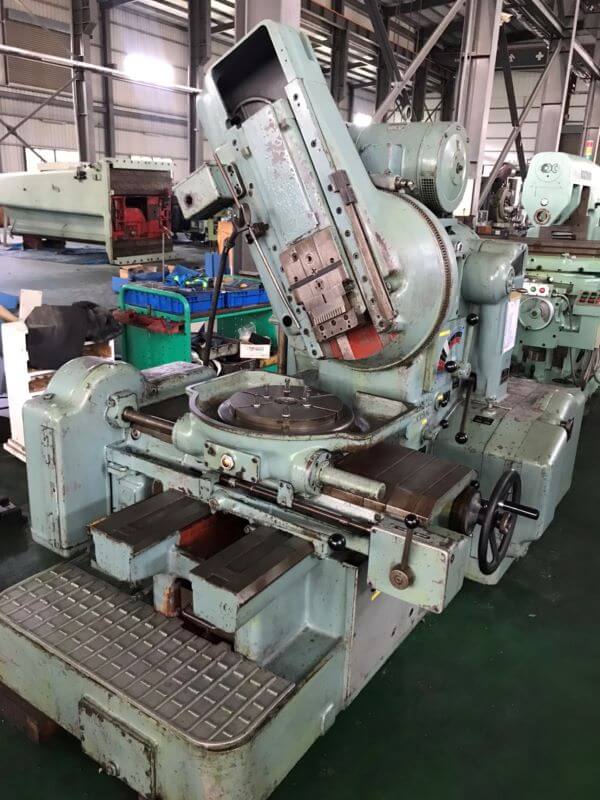

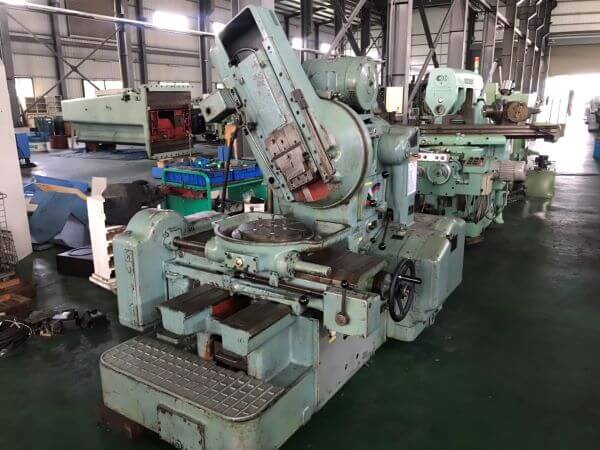

MAAG SH45 Gear Shaper

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

6 photos

Machine

TitleMAAG SH45 Gear Shaper
MakerMAAG
ModelSH45
FamilyGear machines
TypeGear shaper
Weight4,500 kg
LocationTaichung, Taiwan
PricePrice on enquiry
Module6

Not yet confirmed: voltage, year and condition.

Specification

Max/min diameter of gear blank450/20
Max gear facewidth120
Max/min module6/1
Max/min number of teeth250/6
Workpiece weight Max400 kg
Table travel max320
Max helix angle60°
Max/min storke of cutter slide145/0
Max/min position of cutter above table at stroke320/139
Range of cutter strokes37~235SPM
Machine weight4,500 kg

Specification text

Max/min diameter of gear blank 450/20, Max gear facewidth 120, Max/min module 6/1, Max/min number of teeth 250/6, Workpiece weight Max: 400 kg, Table travel max 320, Max helix angle 60°, Max/min storke of cutter slide 145/0, Max/min position of cutter above table at stroke 320/139, Range of cutter strokes 37~235SPM, Machine weight 4,500 kg
