Machine Bay

Machine Bay / Drilling, honing, broaching & shaping / Radial drill

Drilling, honing, broaching & shaping

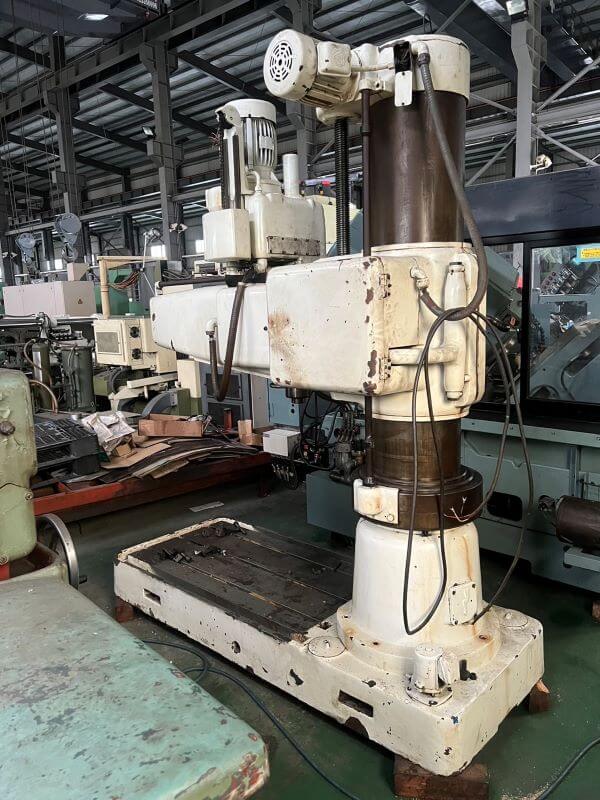

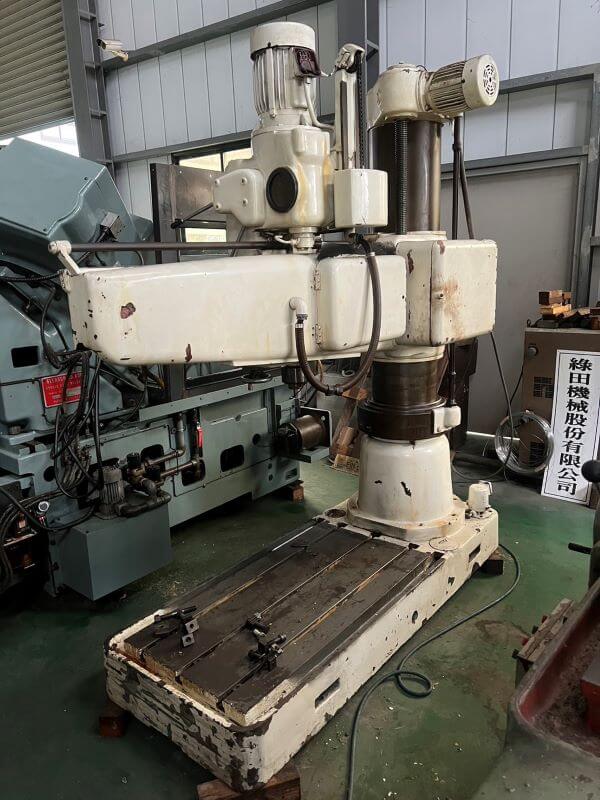

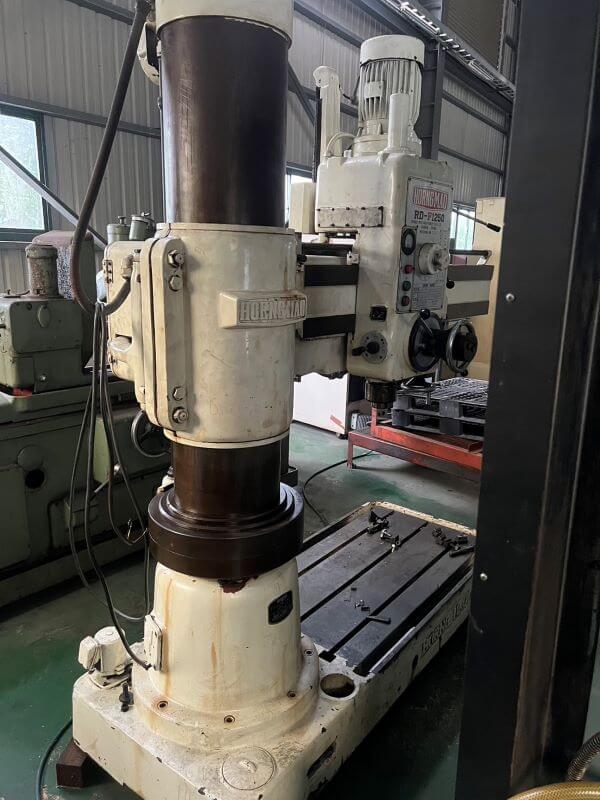

Radial Drilling Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

6 photos

Machine

TitleRadial Drilling Machine

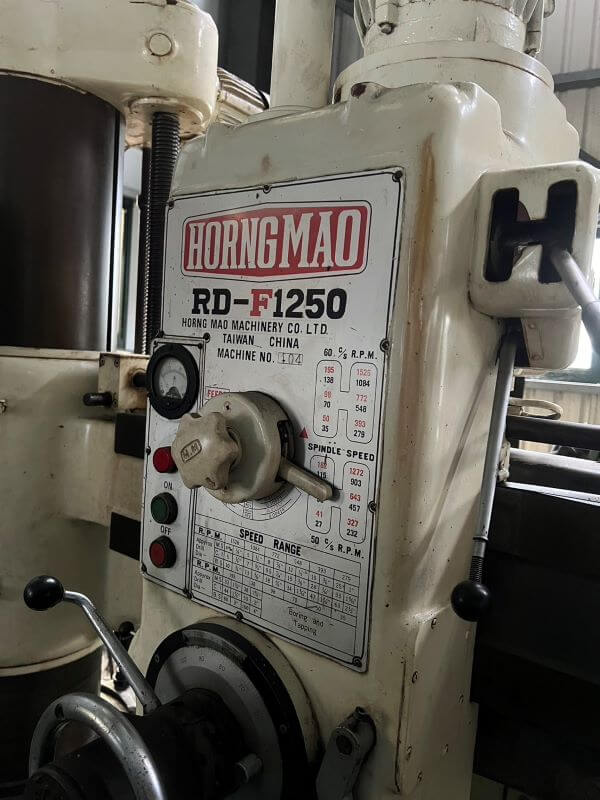

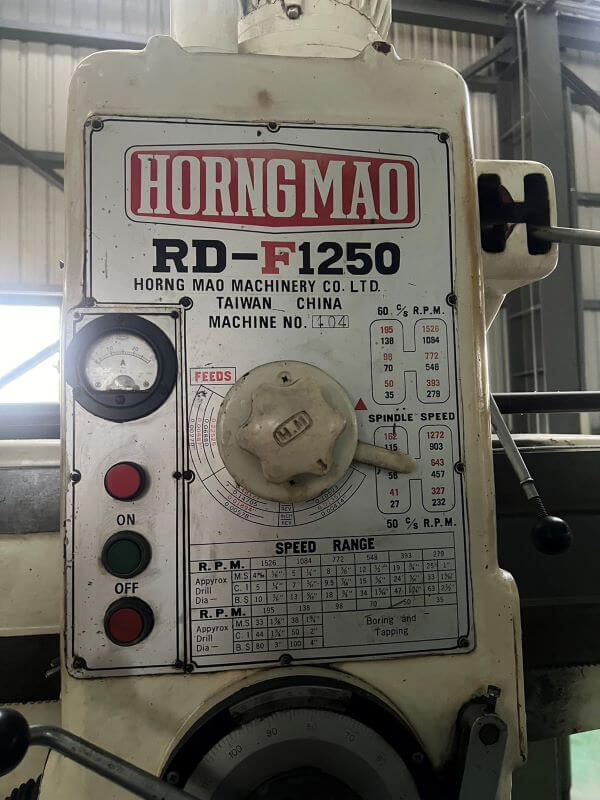

ModelRD-F1250
FamilyDrilling, honing, broaching & shaping
TypeRadial drill
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Drilling solid steel45
cast lron52
boring in steel80
cast lron150
spindle dia and quil65/80
spindl vertical travel300
speed R.P.M35~1526rpm
column diameter320
max distance column sruface to spindle center380~1320
max distance base to spindle2600
main motors2.2kw

Specification text

Drilling solid steel 45, cast lron52, boring in steel 80, cast lron 150, spindle dia and quil 65/80, spindl vertical travel 300, morse taper NO.4, speed R.P.M 35~1526rpm, column diameter 320, max distance column sruface to spindle center 380~1320, max distance base to spindle 2600, main motors 2.2kw
