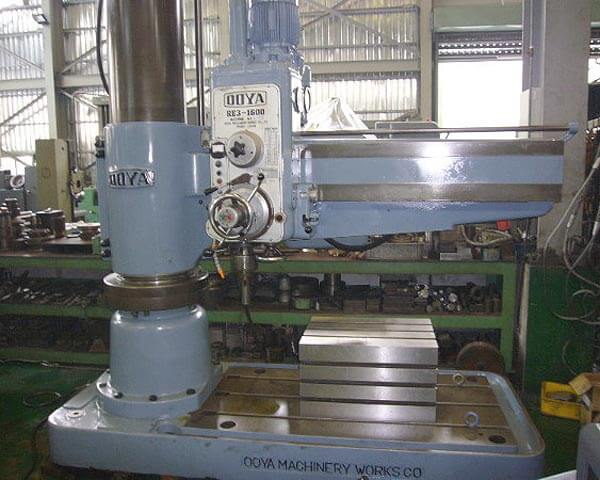

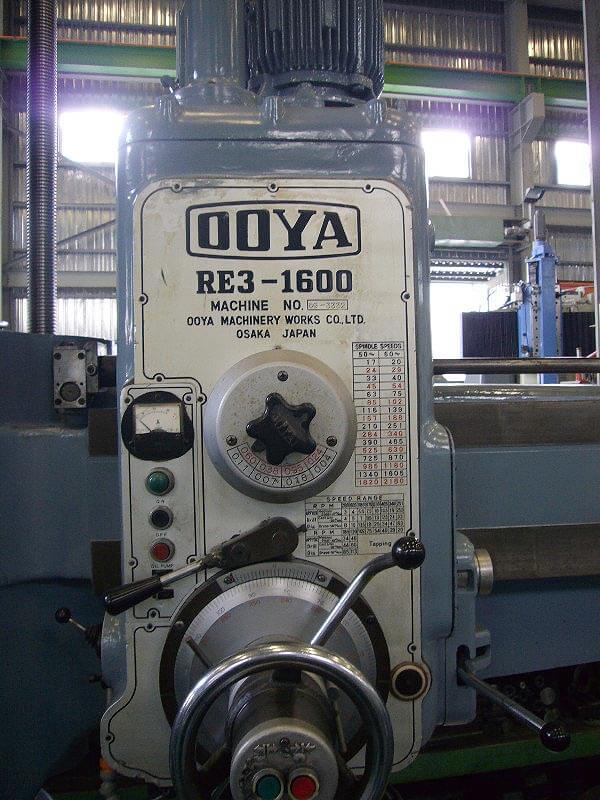

Radial Drilling Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

3 photos

Machine

TitleRadial Drilling Machine
MakerOOYA
ModelRE3-1600
FamilyDrilling, honing, broaching & shaping
TypeRadial drill
Weight4,300 kg
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

Drilling capacity steel75
cast iron90
Tapping capacity steel60
cast iron75
column dia416
Max dist from column saface to spindle center1620(Min 350)
max dist from spindle to base1575(min 340)
Spindle dia75/95
taper M.T5
Spindle travel400
arm travel850
spindle box travel1330
weight4,300 kg

Specification text

Drilling capacity steel 75, cast iron 90, Tapping capacity steel 60, cast iron 75, column dia 416, Max dist from column saface to spindle center 1620(Min 350), max dist from spindle to base 1575(min 340), Spindle dia 75/95, taper M.T5, Spindle travel 400, arm travel 850, spindle box travel 1330, weight 4,300 kg

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
