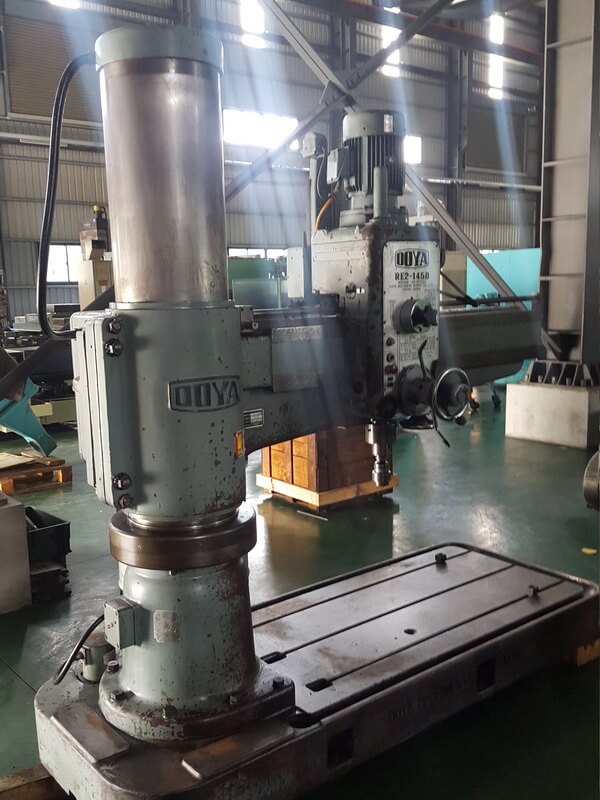

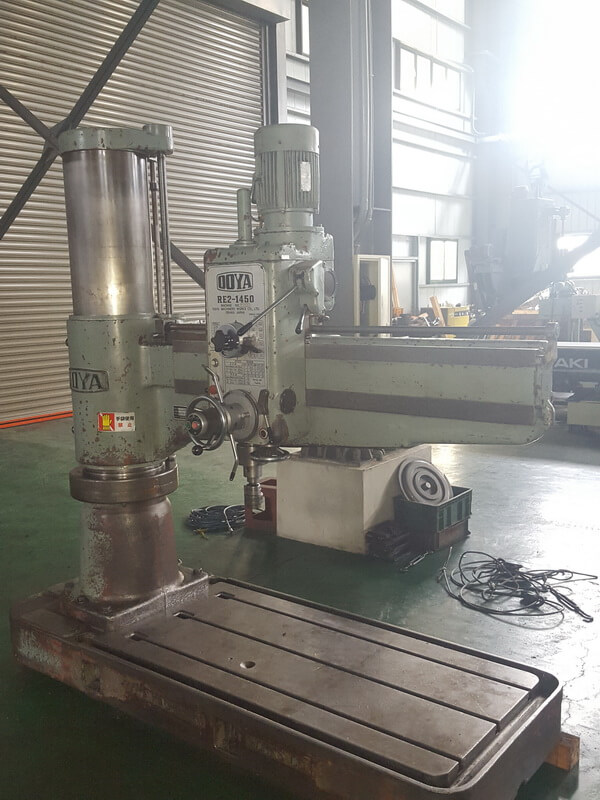

Radial Drilling Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

3 photos

Machine

TitleRadial Drilling Machine
MakerOOYA
ModelRE2-1450
FamilyDrilling, honing, broaching & shaping
TypeRadial drill
LocationTaichung, Taiwan
PricePrice on enquiry

Not yet confirmed: voltage, year and condition.

Specification

drilling capacity steel50
cast iron60
tapping capacity steel45
cast iron52
column dia340
max dist from column surface to spindle center1480 (min 265)
gear box travel1215
max dist from spindle to base1330
arm travel660
spindle dia60
taper mt5
spindle travel300

Specification text

drilling capacity steel 50, cast iron60, tapping capacity steel 45, cast iron 52, column dia 340, max dist from column surface to spindle center 1480 (min 265), gear box travel 1215, max dist from spindle to base 1330, arm travel 660, spindle dia 60, taper mt5, spindle travel 300

Outback Lifting Pty Ltd

office@outbacklifting.com.au

How to buy

  1. 1 Ask for a written quote.
  2. 2 We confirm specs, photos and video where available.
  3. 3 We quote freight and delivery to your site.
