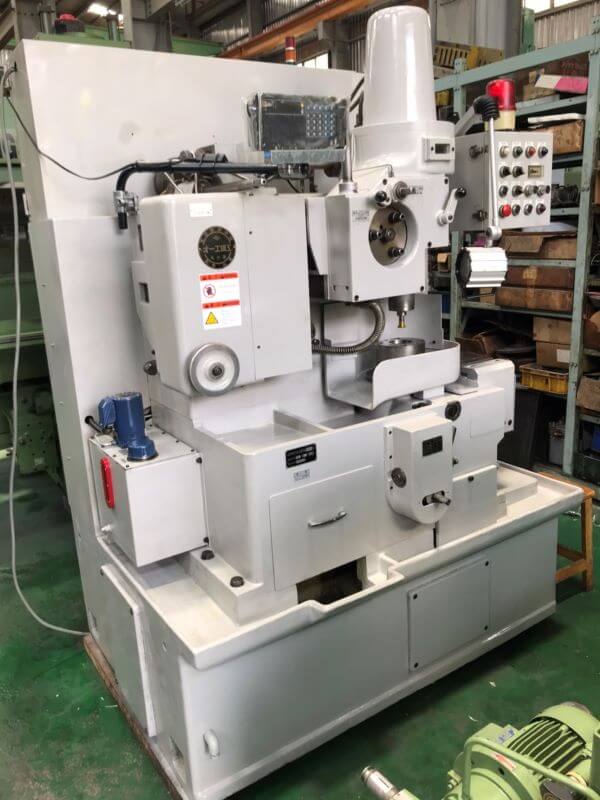

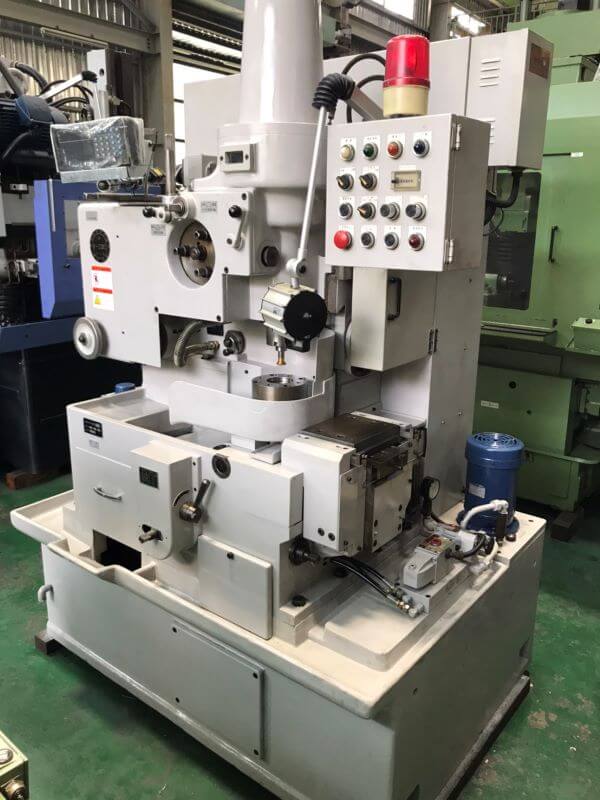

High Speed Gear Shaping Machine

Details being confirmed with supplier

Price on enquiry

Currently in Taichung, Taiwan. Delivered anywhere in Australia. Freight quoted on enquiry.

Request a quote

6 photos

Machine

TitleHigh Speed Gear Shaping Machine
MakerJAPAN OHE
ModelSS-250 type
FamilyGear machines
TypeGear shaper
Weight3,800 kg
LocationTaichung, Taiwan
PricePrice on enquiry
Module6

Not yet confirmed: voltage, year and condition.

Specification

Max dia of workpiece250
Max module6
Cutter Spindle dia85
Stroke/min600rpm
Main Motor2.2kw×6P
motor for Hydraulic Oil Tank1.5kw
Net weight3,800 kg
Floor Space1200×1650

Specification text

Max dia of workpiece 250, Max module 6, Max width(Ext)60, Max Width (lnt) 40, Cutter Spindle dia 85, Stroke/min 600rpm, Main Motor 2.2kw×6P, motor for Hydraulic Oil Tank 1.5kw, Net weight 3,800 kg, Floor Space 1200×1650
